Sophisticated type.
Machining centre with swivelling spindle: TILTENTA 10-2600
The TILTENTA 10 with travel paths of 2600 x 1000 x 1000 (X/Y/Z) is ideal wherever heavy-duty chipping is required in machine and tool construction where space is at a premium. The integrated heavy-duty rotary table allows workpieces weighing up to 2,200 kg to be machined. The standard equipment with the SK50 BIG PLUS duplex contact spindle system (optional: HSK A100) is another highlight of this stable all-rounder.
Your advantages with the TILTENTA 10-2600
- Clearly superior: BIG PLUS. The simultaneous taper and face contact of the tool fitting in the BIG PLUS machine spindle ensures an extremely stable connection between the tool fitting and spindle. At the same time, the spindle is compatible with all common SK50 holders.
- Extra-large Z- and Y-axis travel path of 1,000 mm

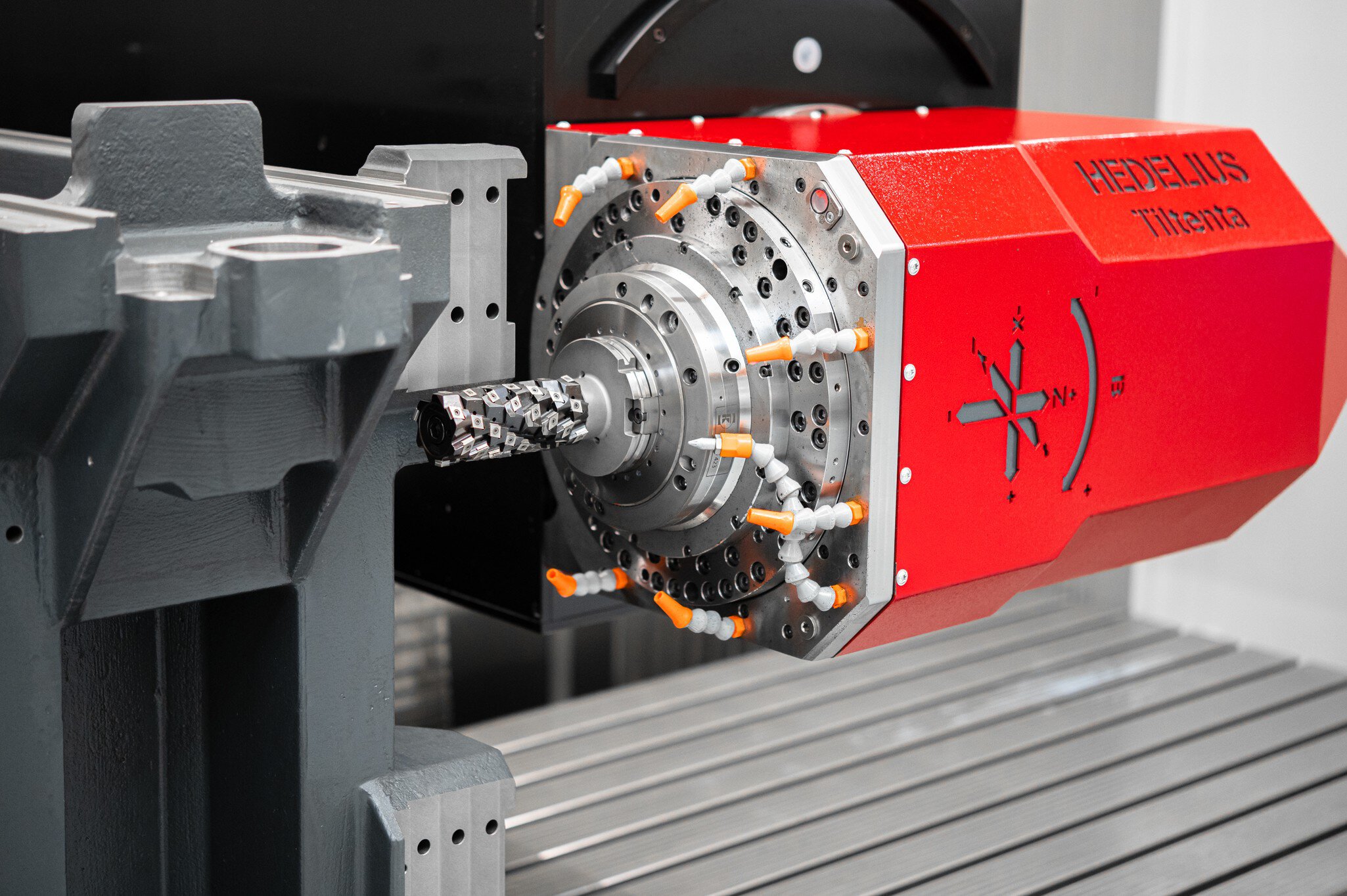

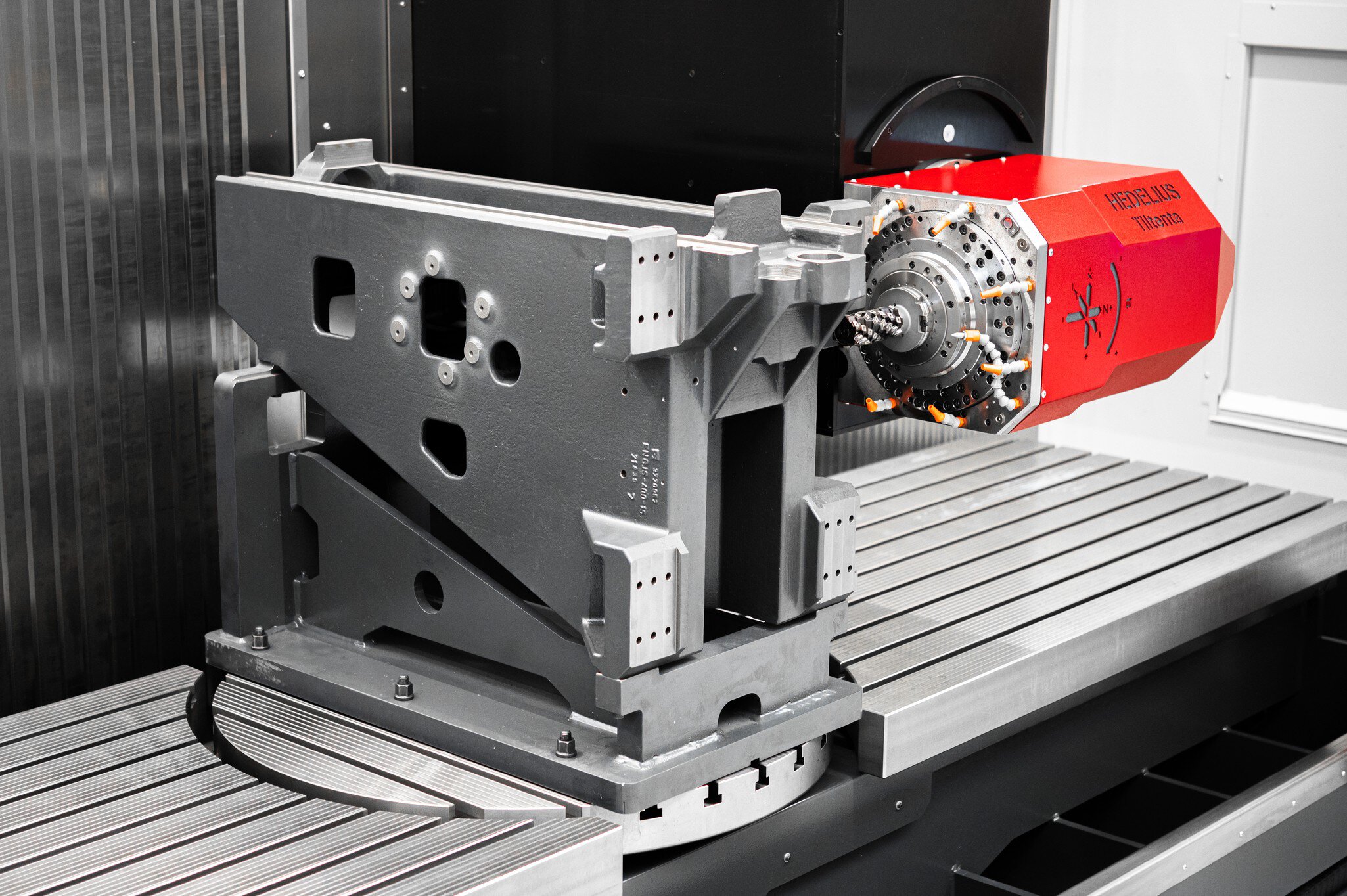

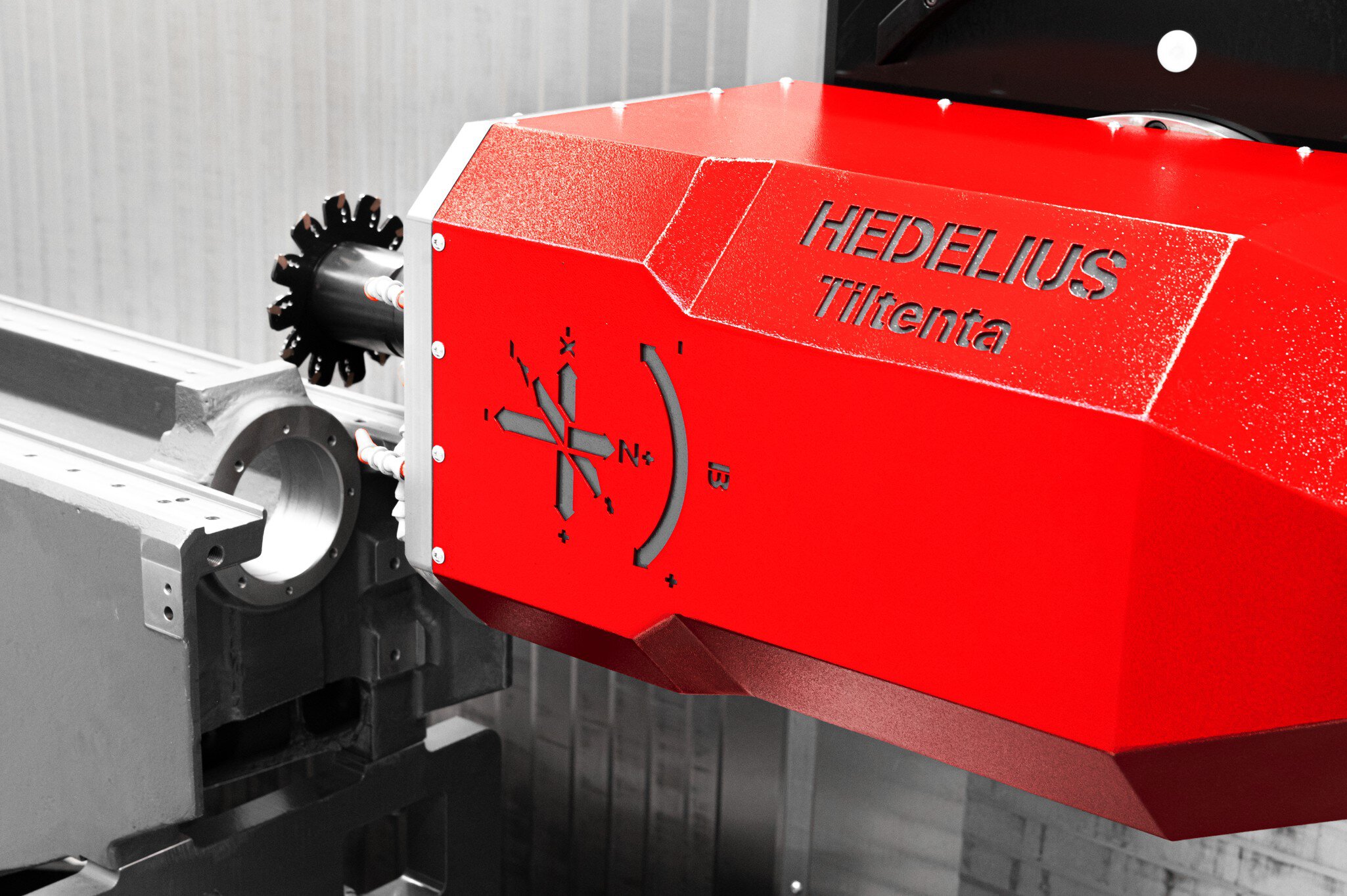

- Infinitely variable swivelling main spindle with hydraulic clamping
- High table load

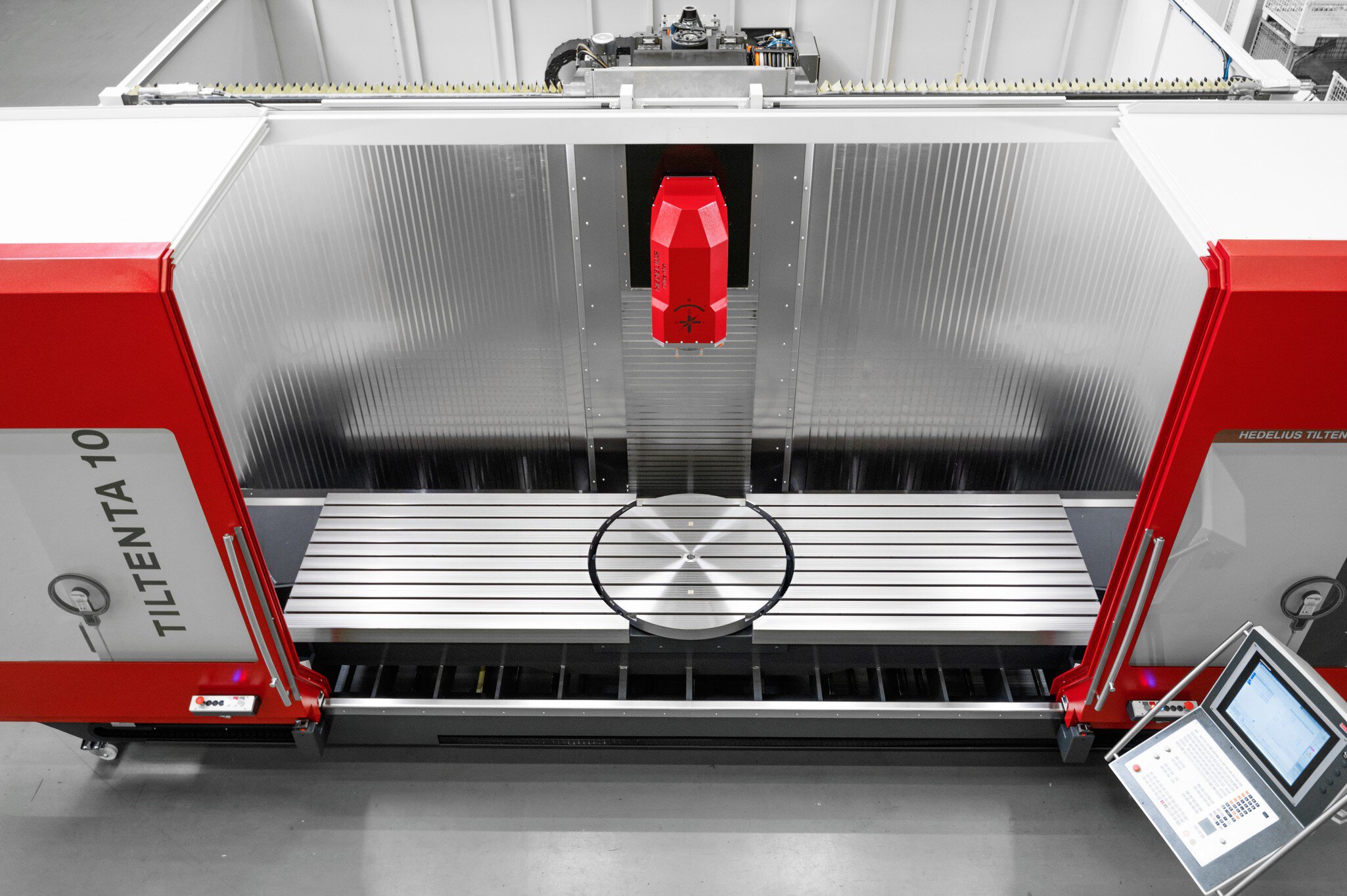

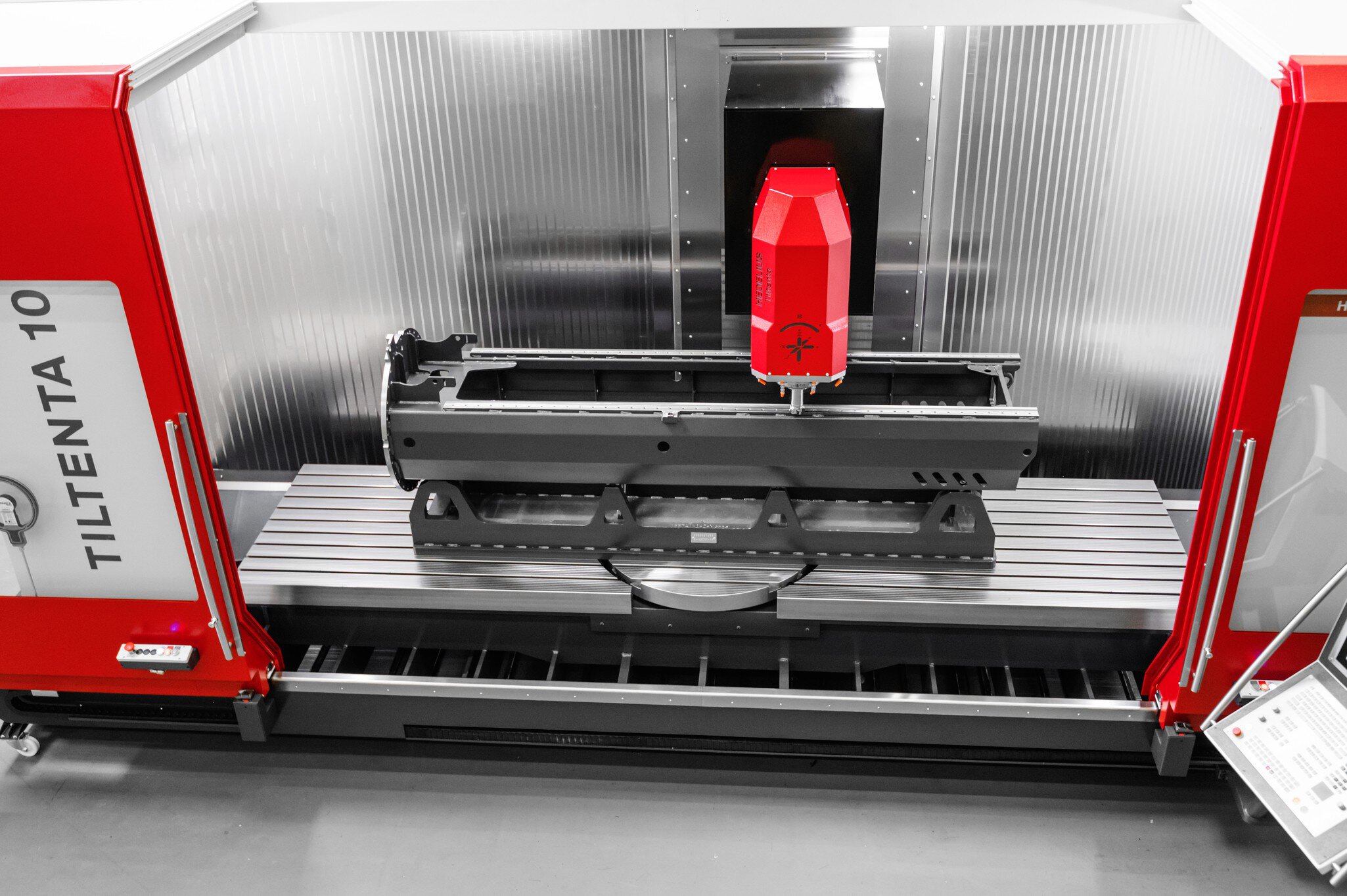

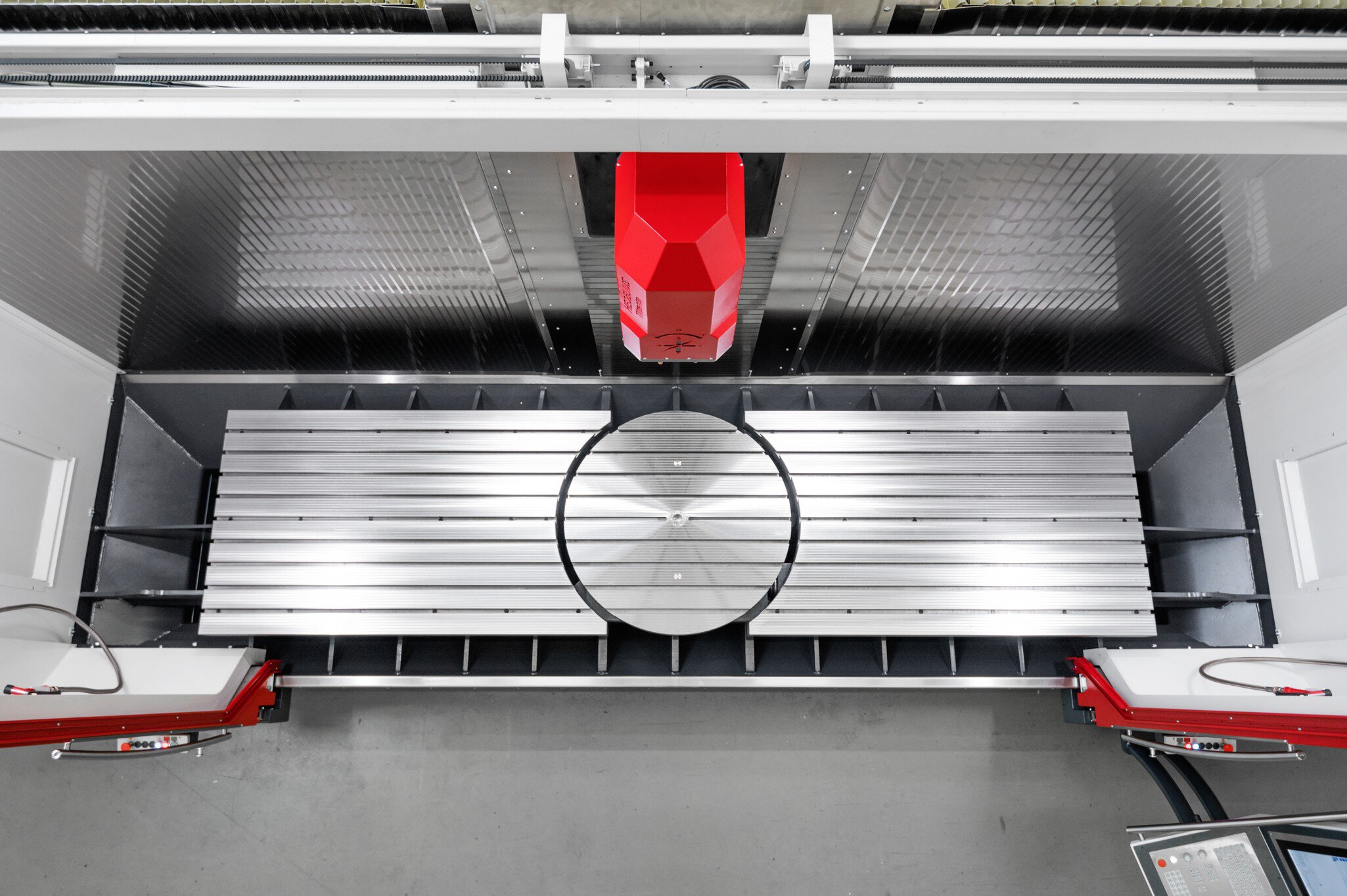

- Optionally with integrated heavy-duty rotary table
- Highlight: Tool magazine with access to up to 192 tools
- Tool lengths up to 400 mm
Arrange a consultation
Comparison of the machines.
This is where the machine comparison is created: Add further machines to compare performance parameters.

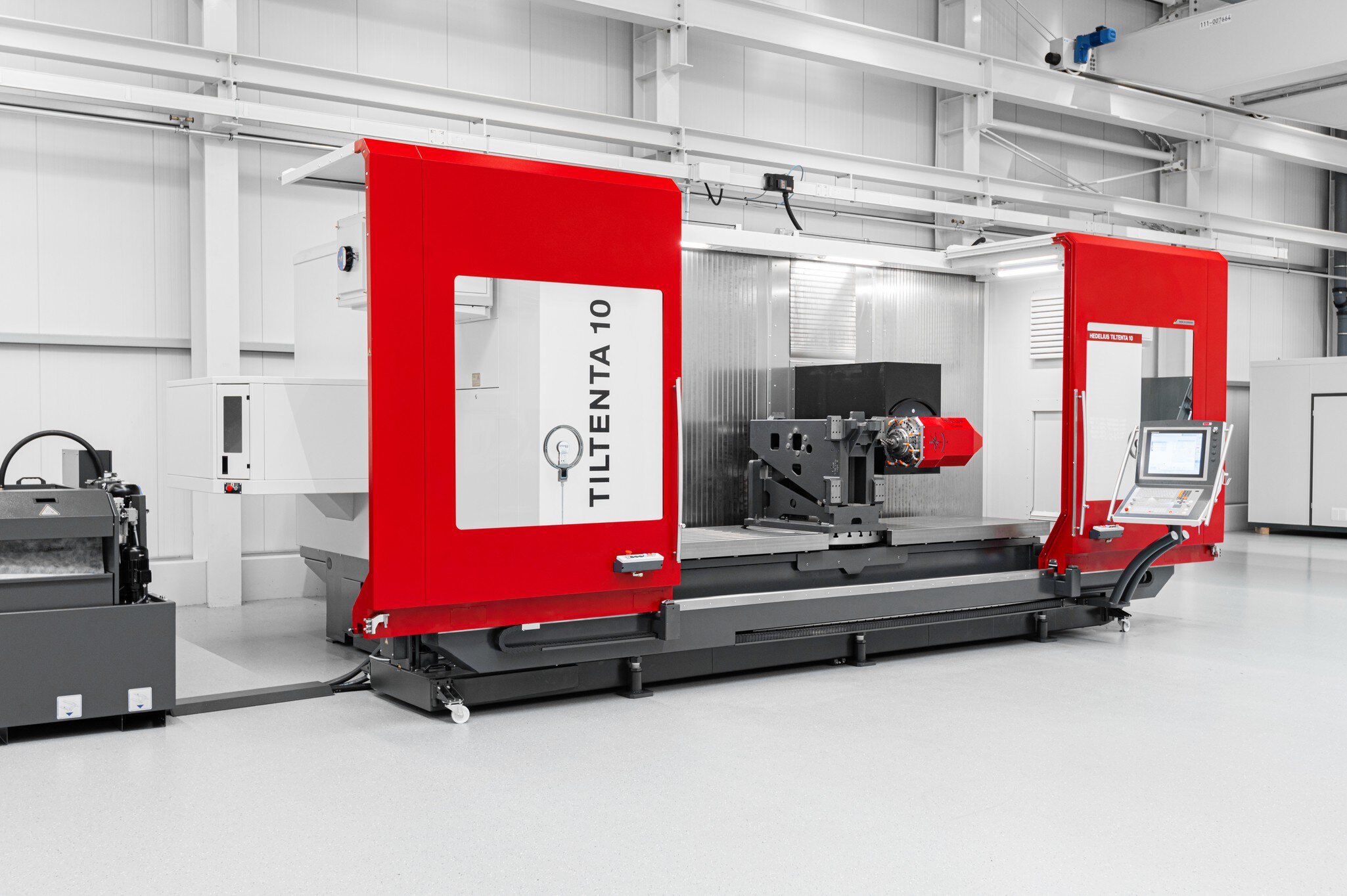

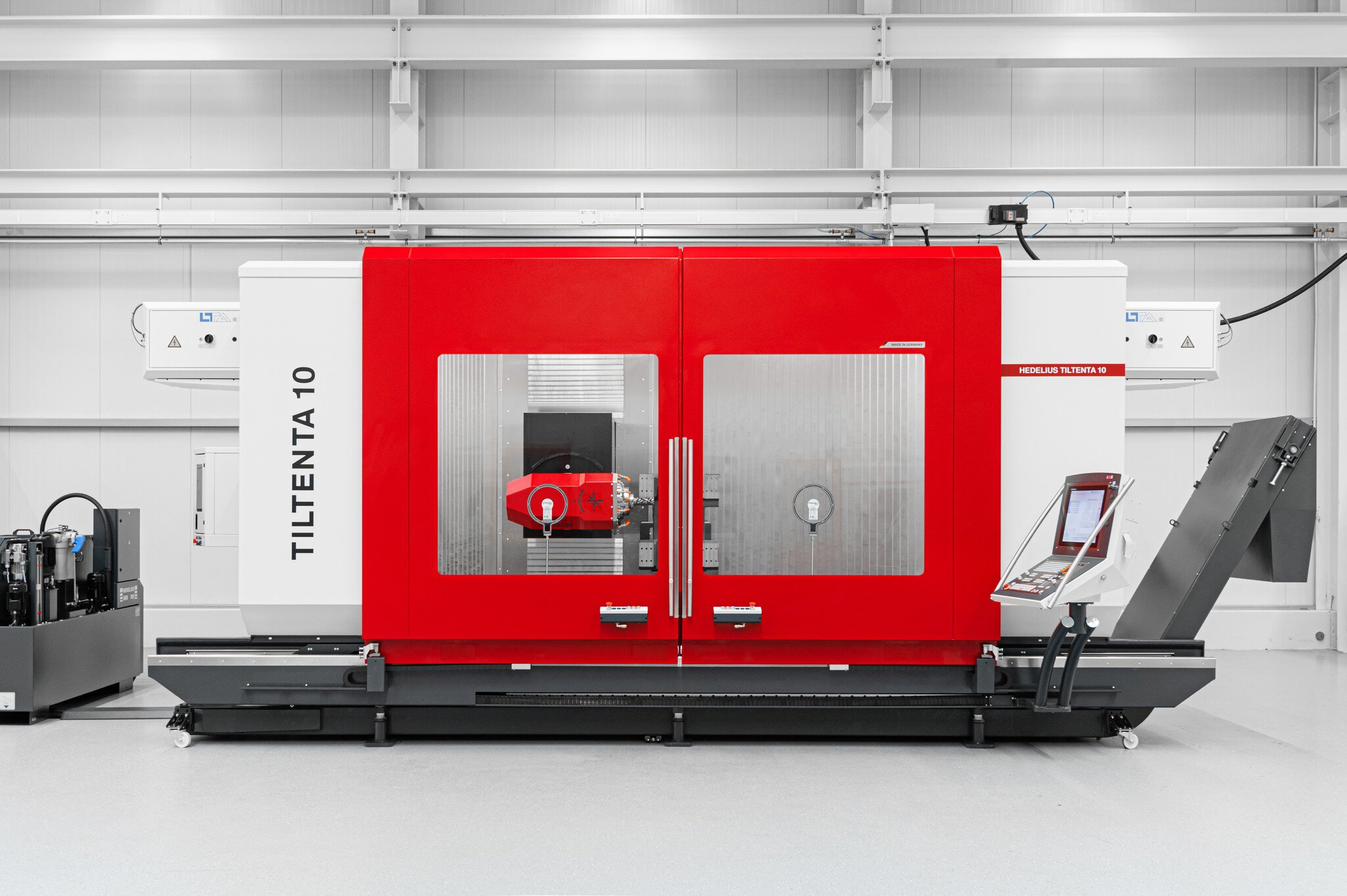

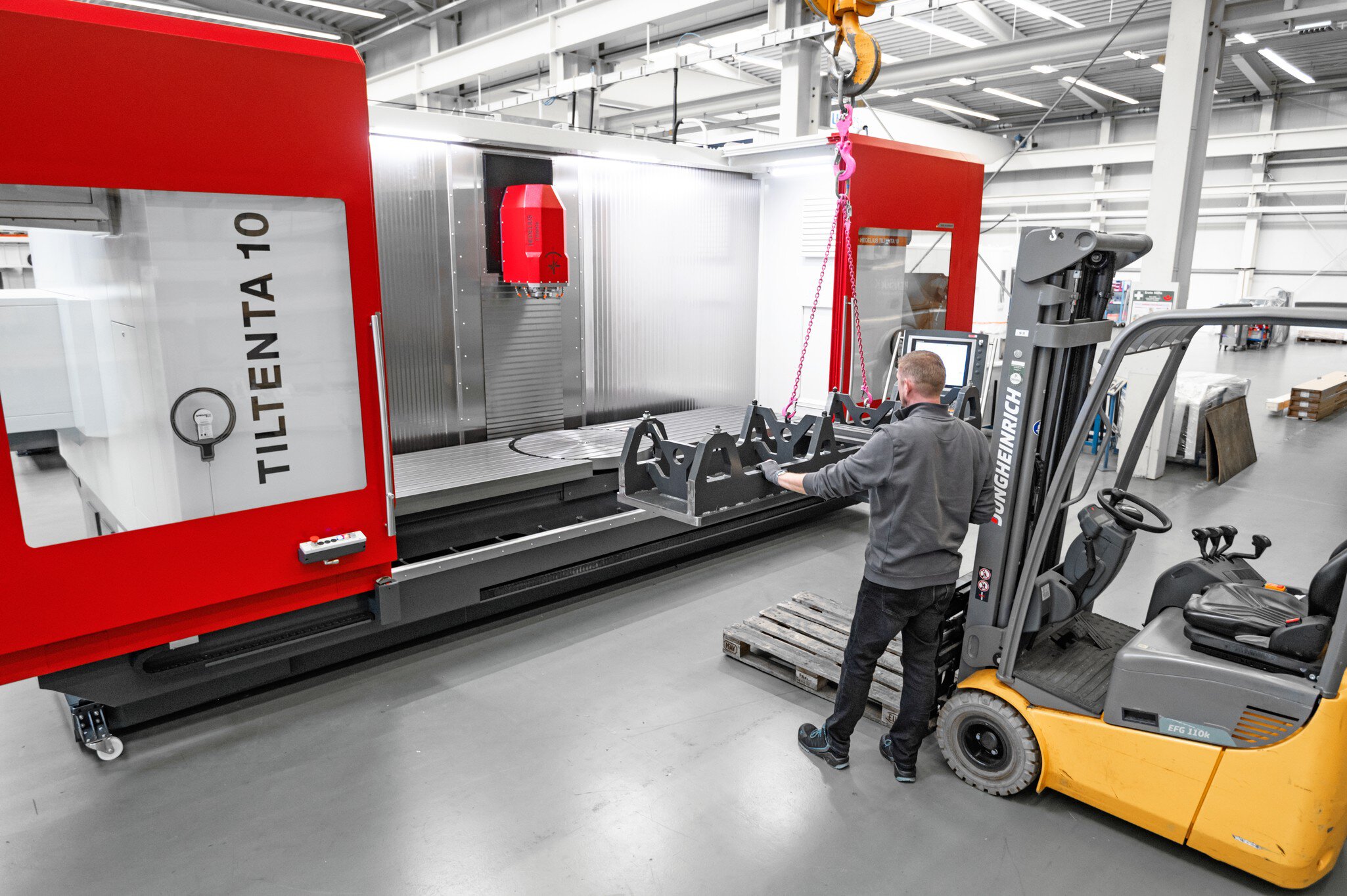

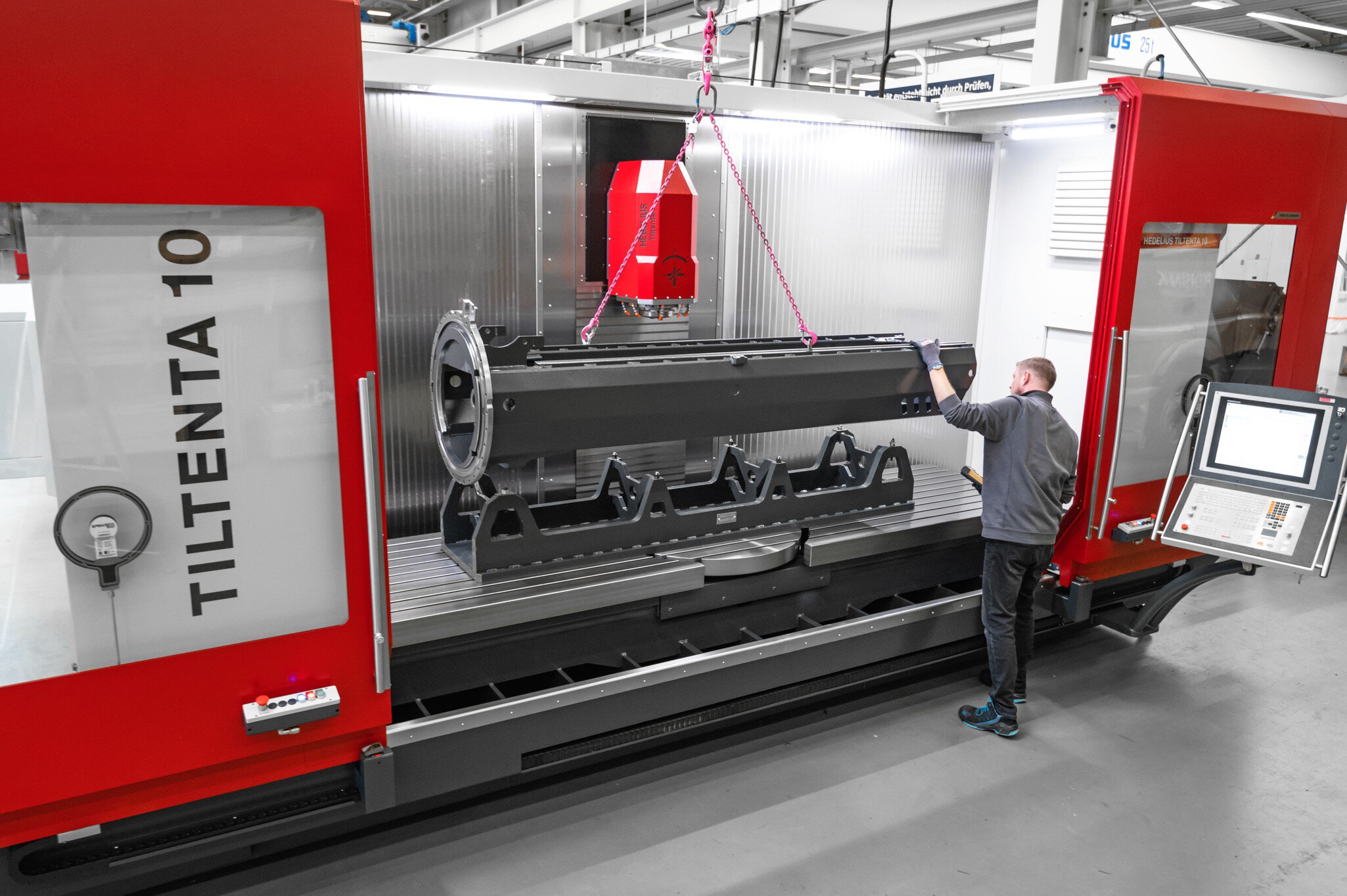

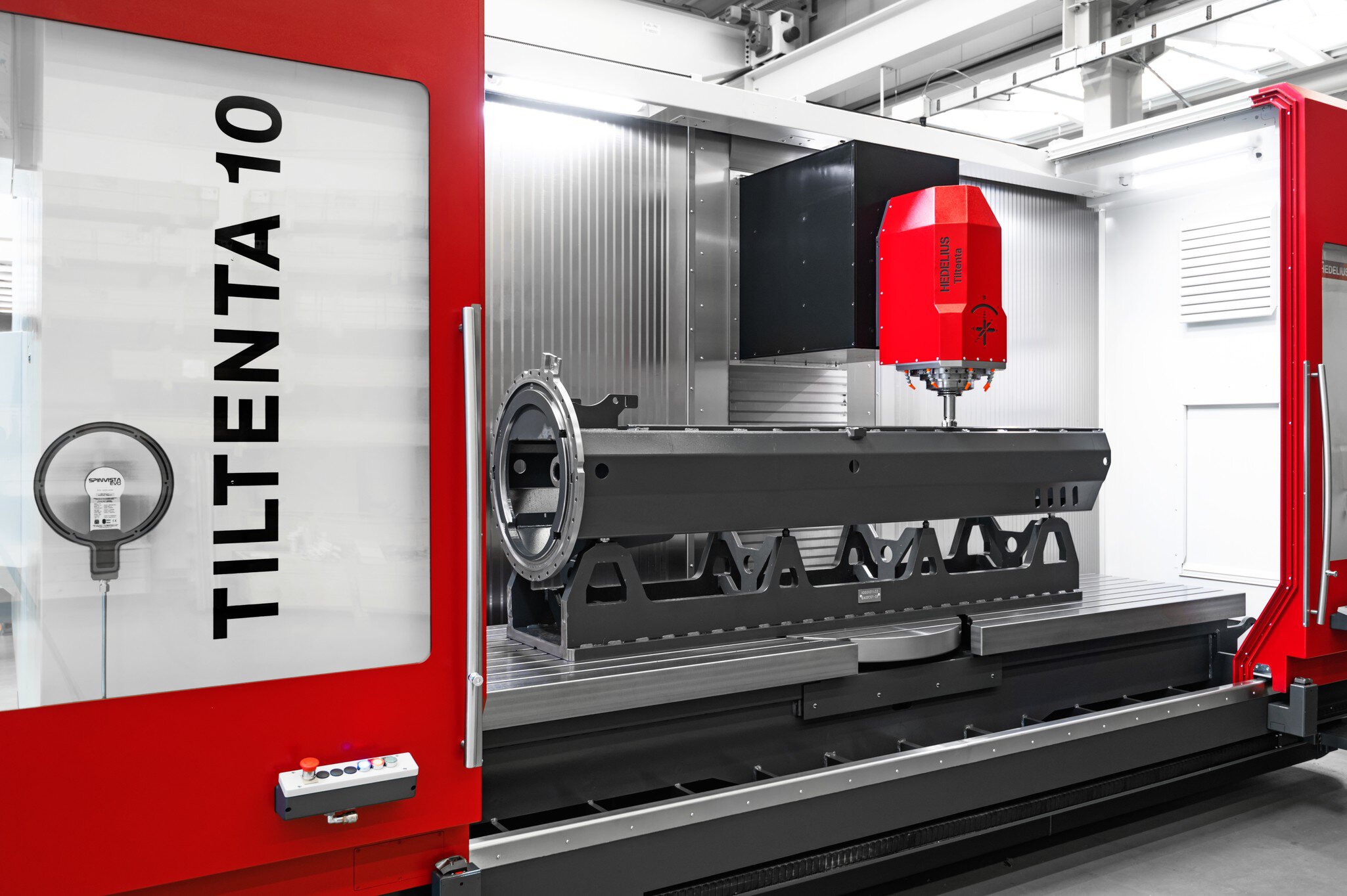

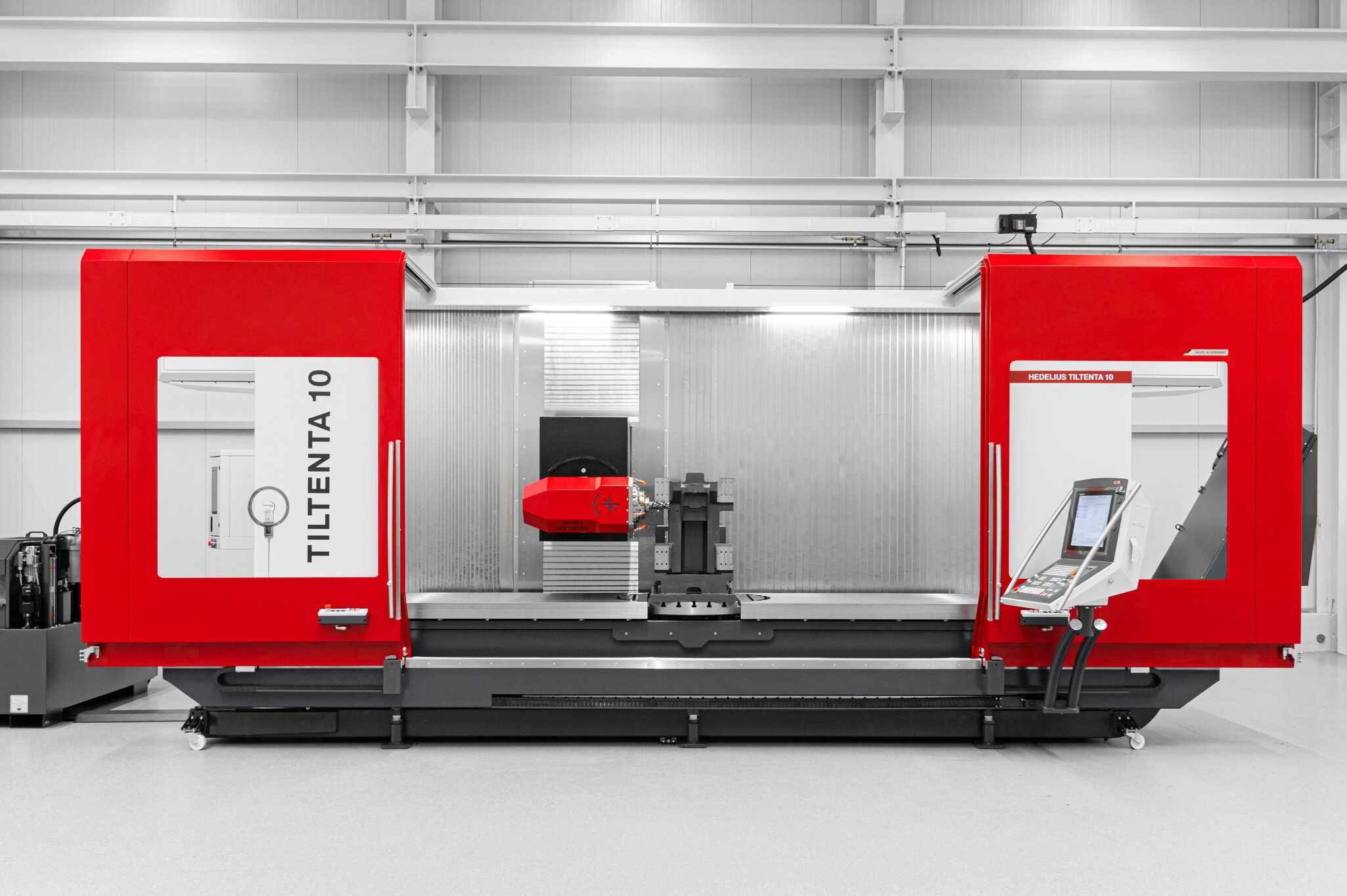

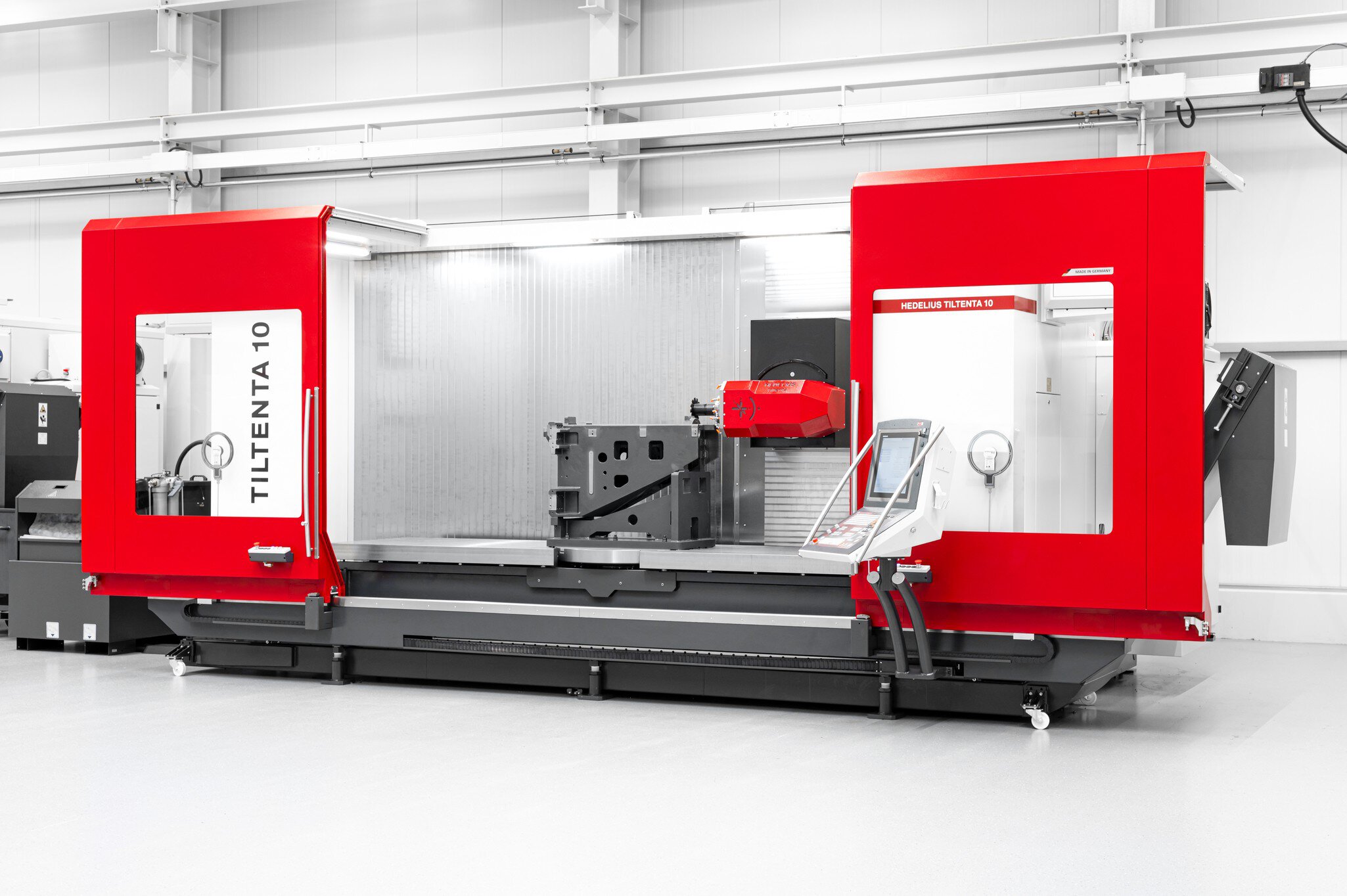

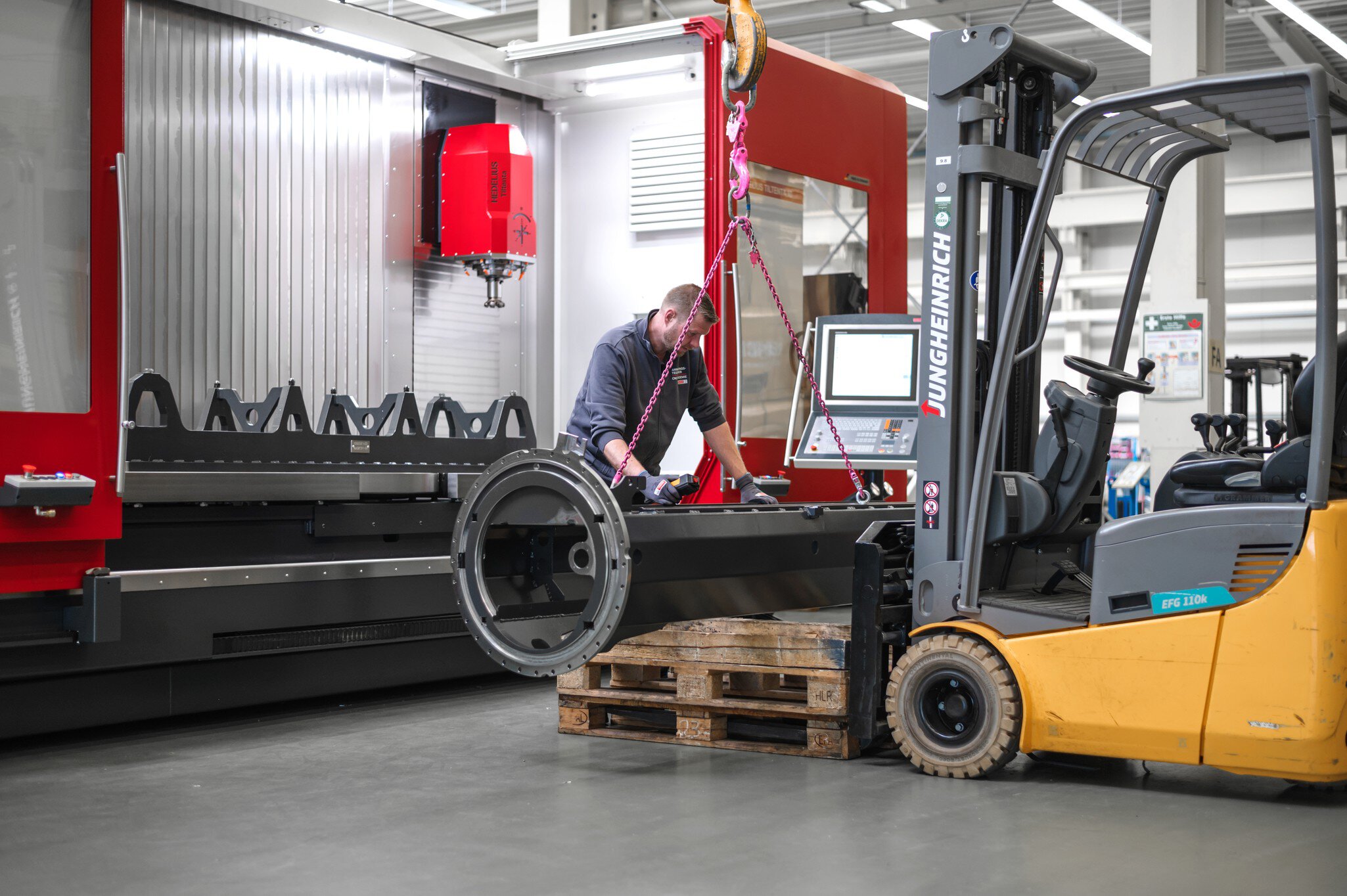

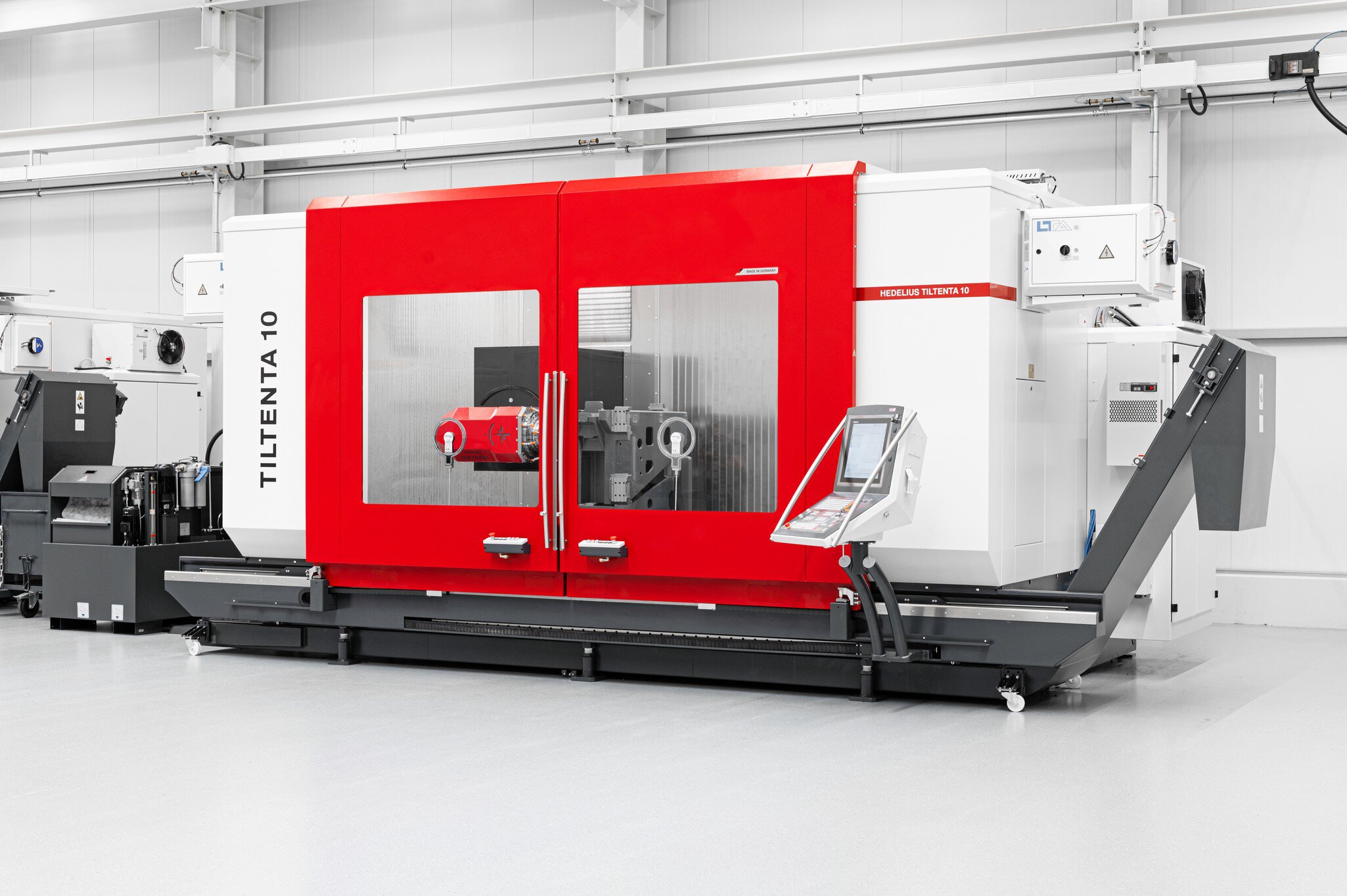

Gallery of the TILTENTA 10 series
The basis of precision.
Many factors play a role in achieving a certain workpiece accuracy. On the one hand, there are the machines themselves. The type, components and software all have an influence on the machining result. However, there are also many accompanying factors to consider, from the location of the machine to measuring equipment, clamping devices and tools through to the qualifications of the employees.
Accuracy of HEDELIUS machining centres
In-house production.
Guides and straightness.
IT6 circular accuracy.
Measuring systems on round axes.
Long-term precision.
Temperature compensation.
