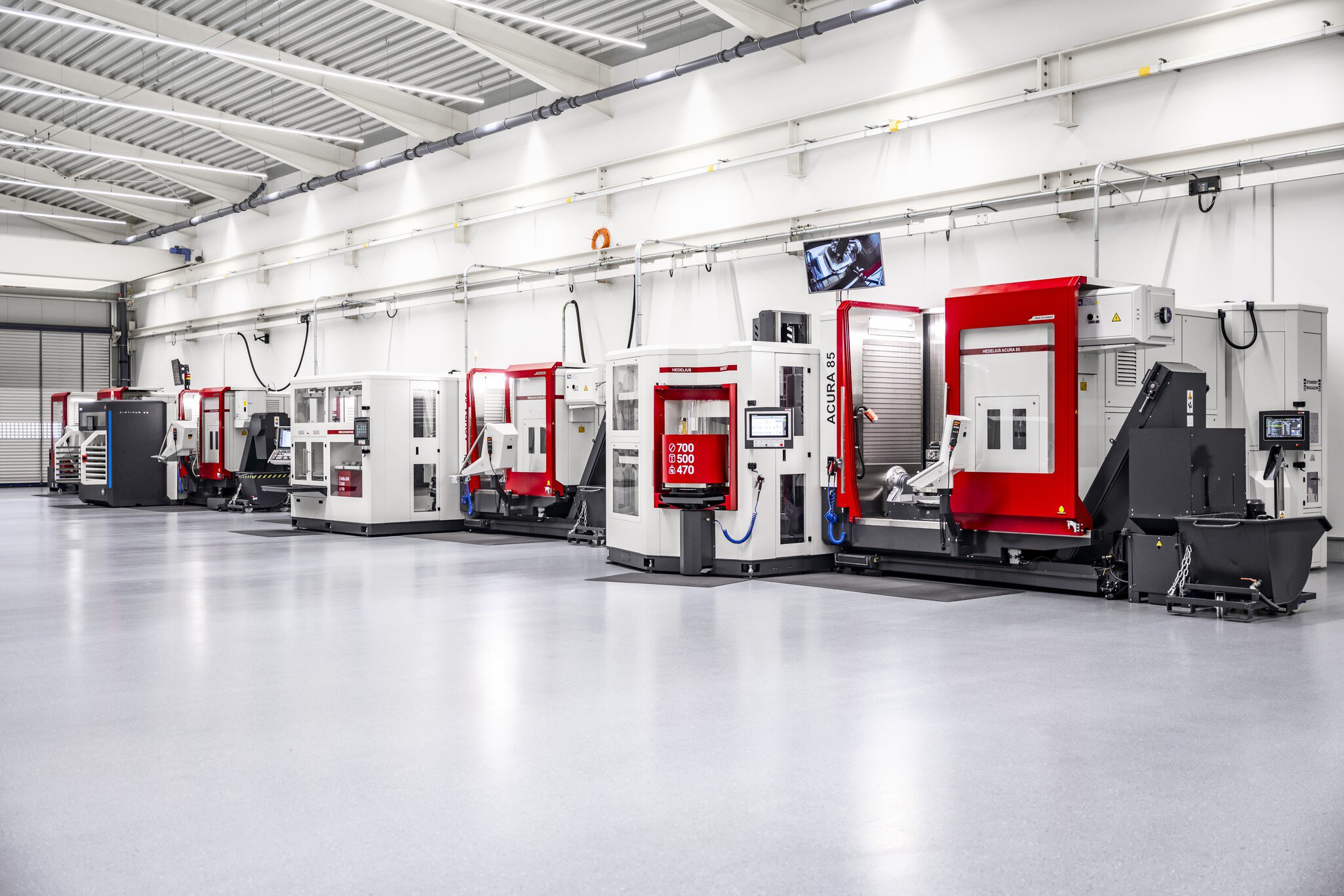

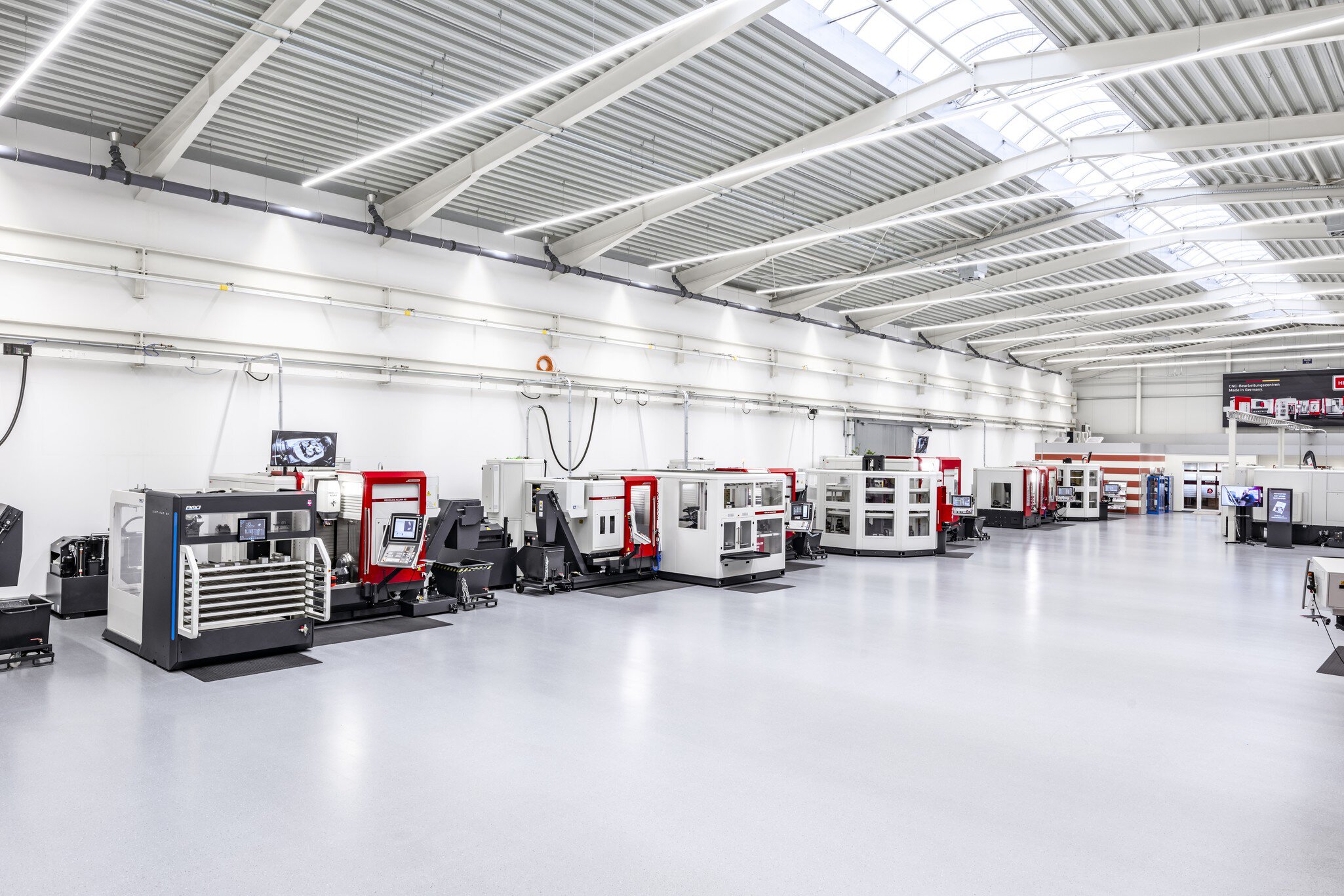

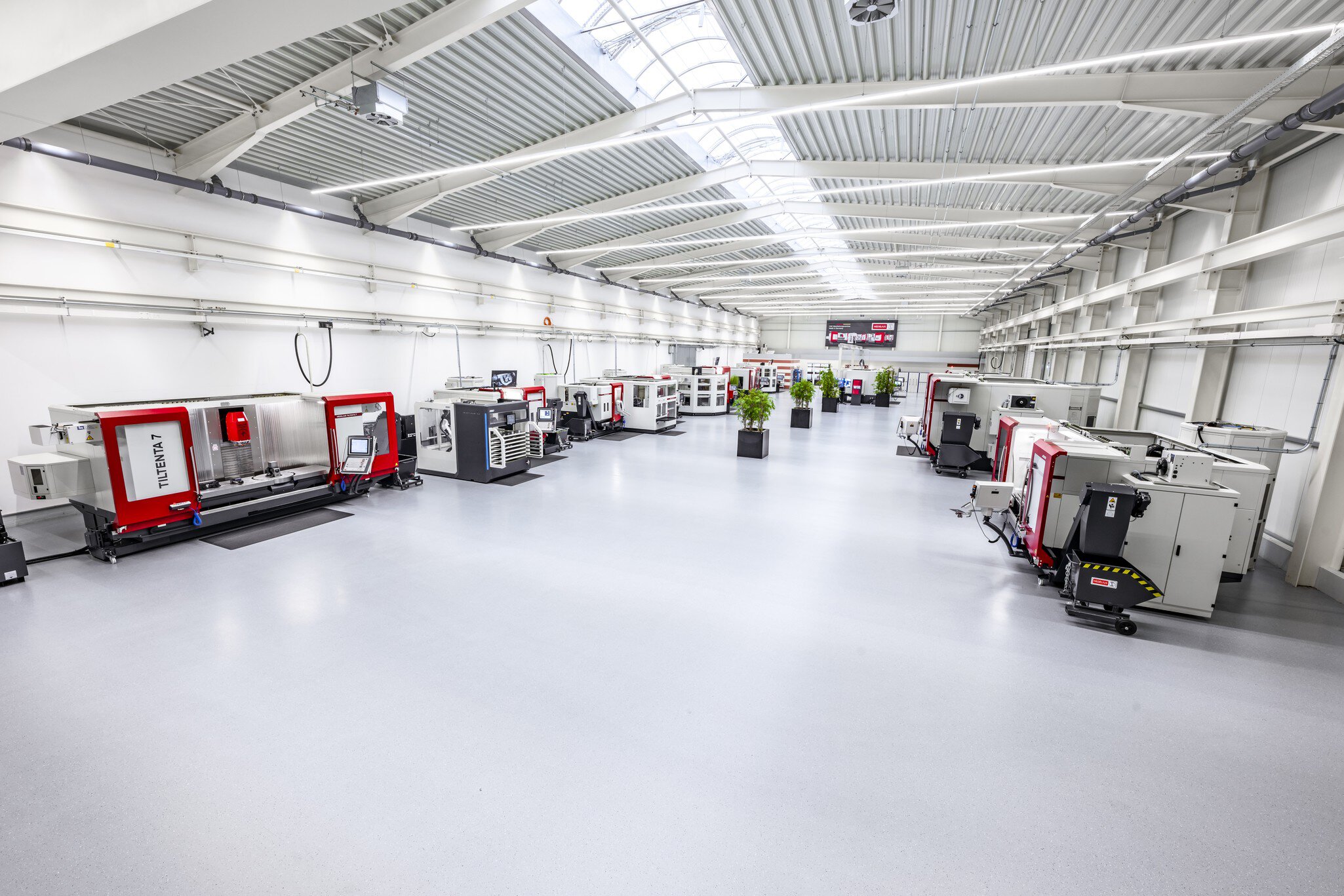

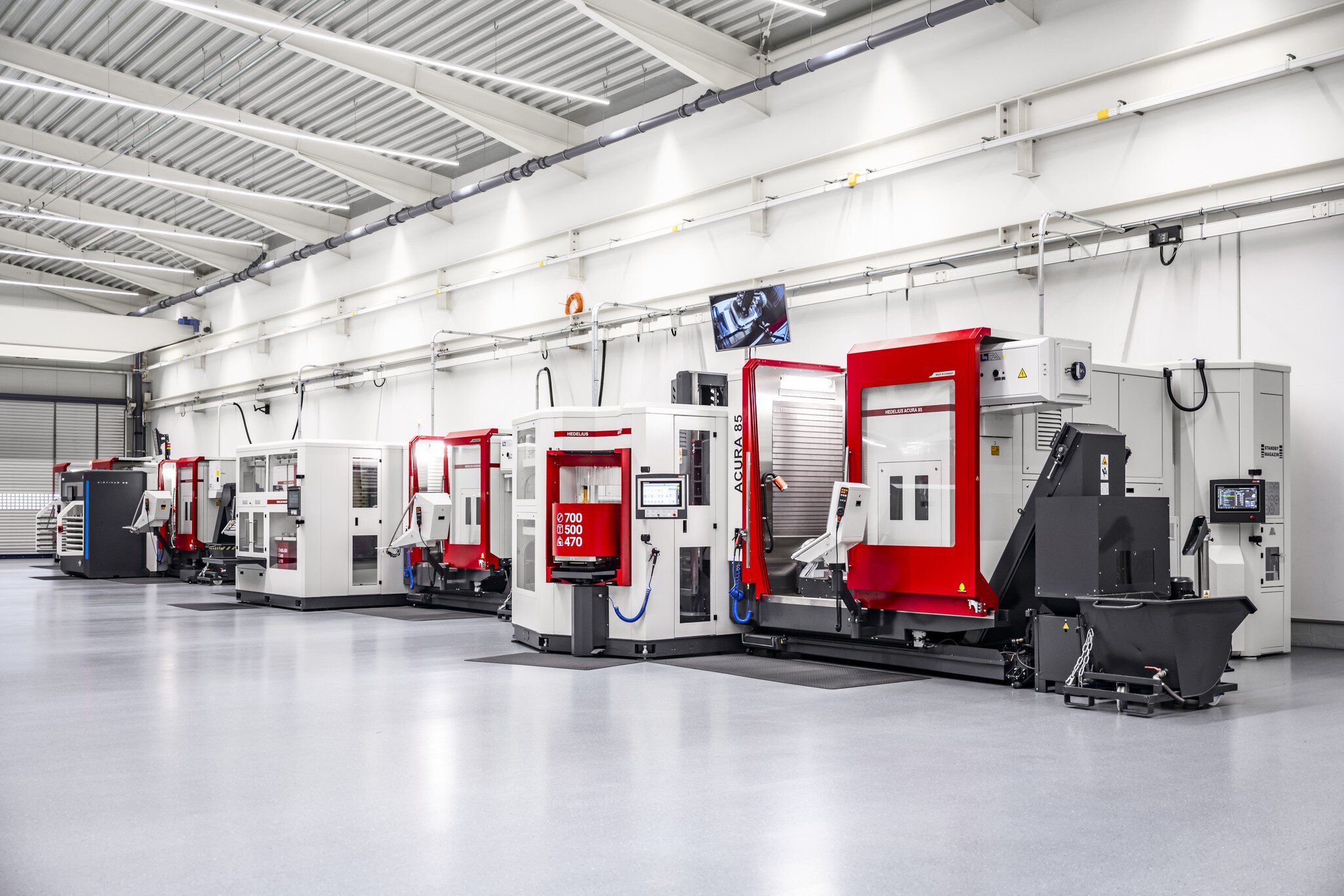

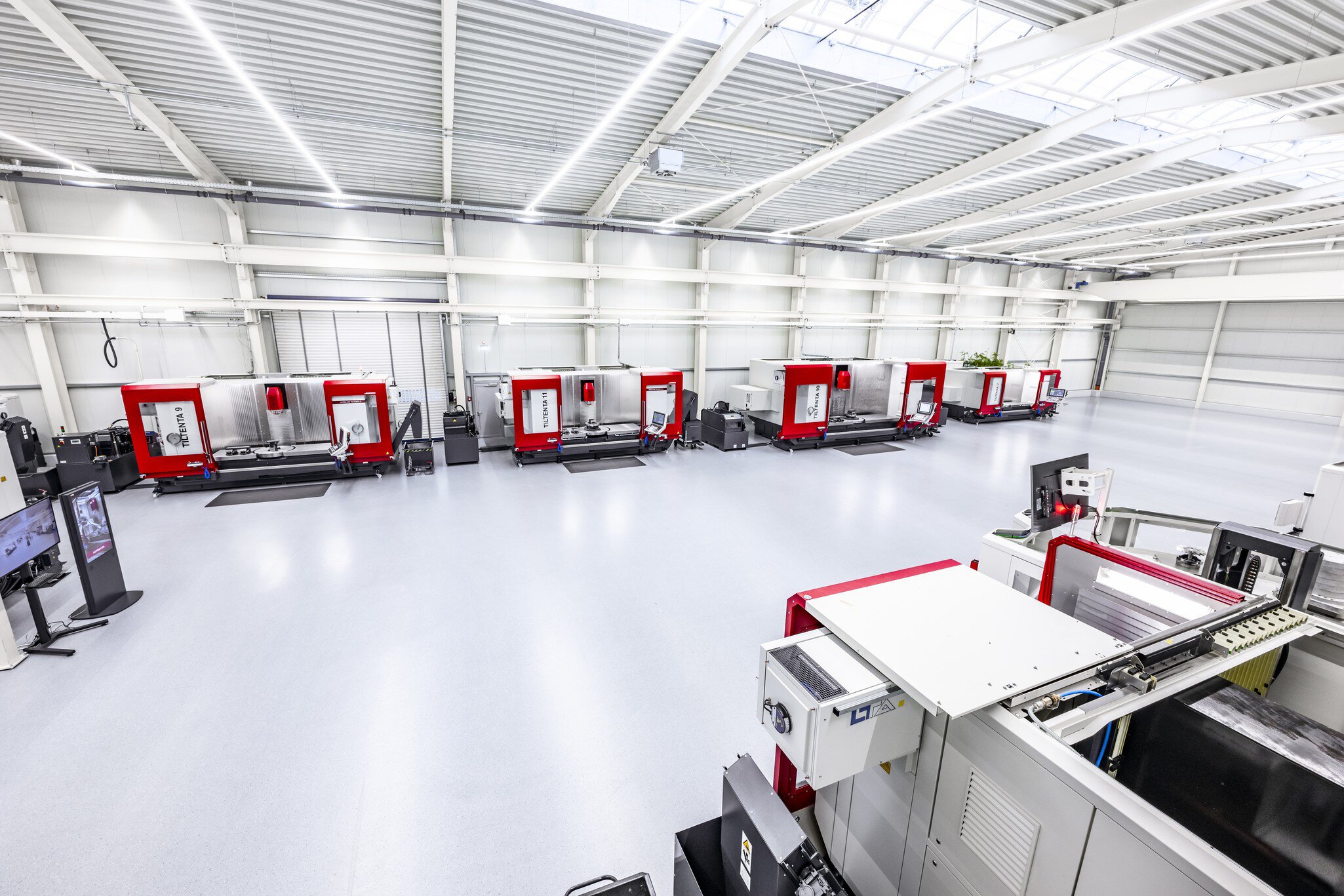

HEDELIUS technology centre.

Visit us in Meppen.

The HEDELIUS technology centre offers customers and interested parties a unique opportunity to experience our high-performance machining centres and automation solutions live in action. Here you can see for yourself the outstanding performance and safety of our systems. In addition to our in-house MARATHON automation systems, we also present a variety of other interface solutions for automation at the technology centre that are perfectly tailored to your needs.

The HEDELIUS technology centre is therefore a central part of our company. It offers you the unique opportunity to experience our machining centres and automation solutions up close and convince yourself of their first-class quality.

Make an appointment

CNC Academy

The highly qualified trainers at our CNC Academy offer operator and programming training as well as test machining under real production conditions at the HEDELIUS technology centre.

Workshops and seminars

We offer you a wide range of opportunities to expand your knowledge, make valuable contacts and experience our latest technologies and innovations up close. Visit our technology centre as part of a wide range of events.

Factory tour

We will show you our production facilities and present our machining centres live under chip removal. Make an appointment now!

Test processing

Would you like to test the machinability of a new material? No problem! Talk to us!

Our exhibition models.

ACURA series

5-axis machining centres with rotating/swivelling table unit.

ACURA 50

Travel paths (X/Y/Z): 500 x 550 x 550 mm

Travel paths: 500 x 550 x 550 mm

Dimensions rotating/swivelling table: Ø 500x430 mm

Rotating table dimensions: Ø 500x430 mm

Load rotating/swivelling table max.: 300 kg

Turntable load: 300 kg

ACURA 65

Travel paths (X/Y/Z): 700 x 650 x 600 mm

Travel paths: 700 x 650 x 600 mm

Dimensions rotating/swivelling table: Ø 650x540 mm

Rotating table dimensions: Ø 650x540 mm

Load rotating/swivelling table max.: 500 kg

Turntable load: 500 kg

ACURA 85

Travel paths (X/Y/Z): 900 x 850 x 700 mm

Travel paths: 900 x 850 x 700 mm

Dimensions rotating/swivelling table: Ø 850x750 mm

Rotating table dimensions: Ø 850x750 mm

Load rotating/swivelling table max.: 1000 kg

Turntable load: 1000 kg

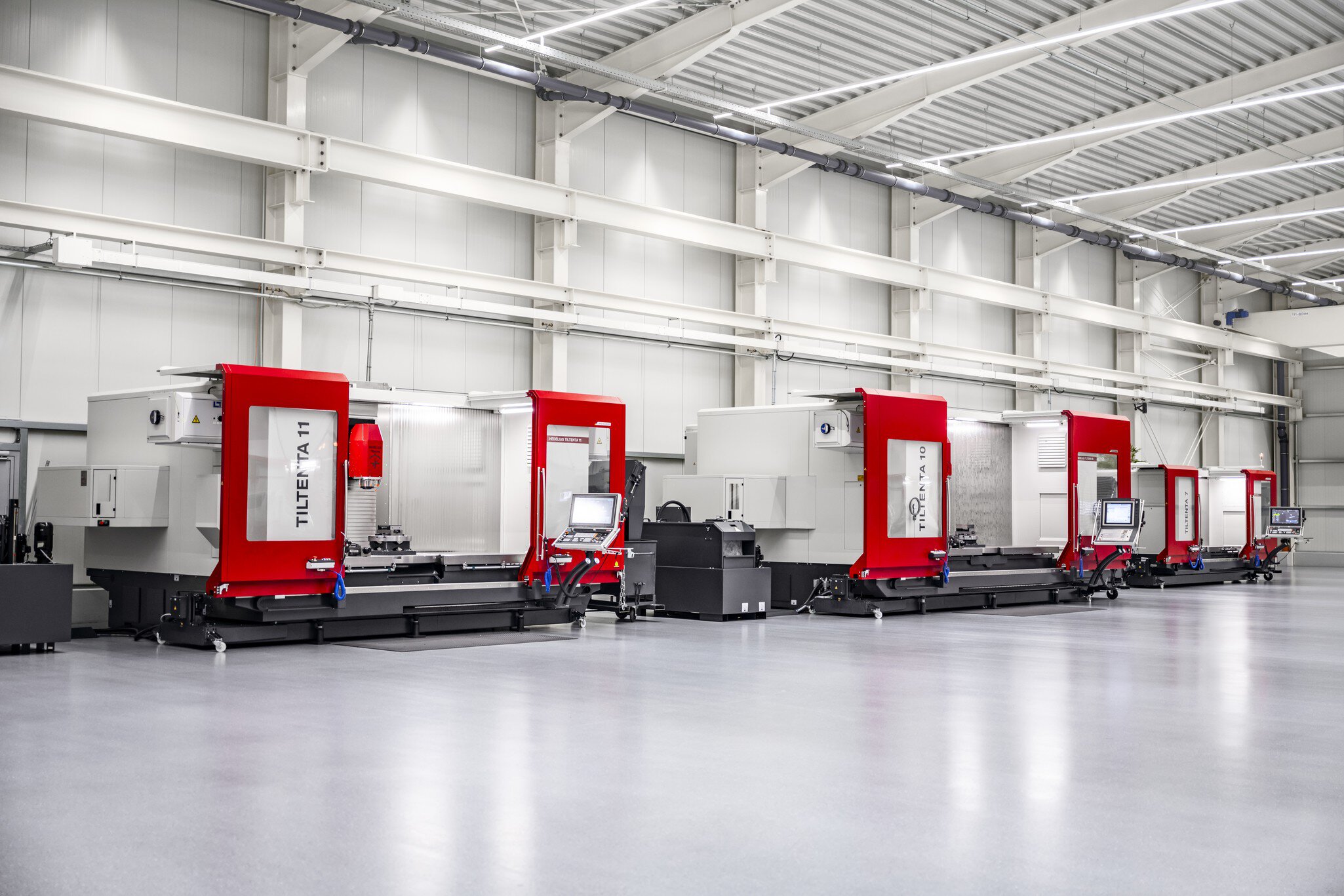

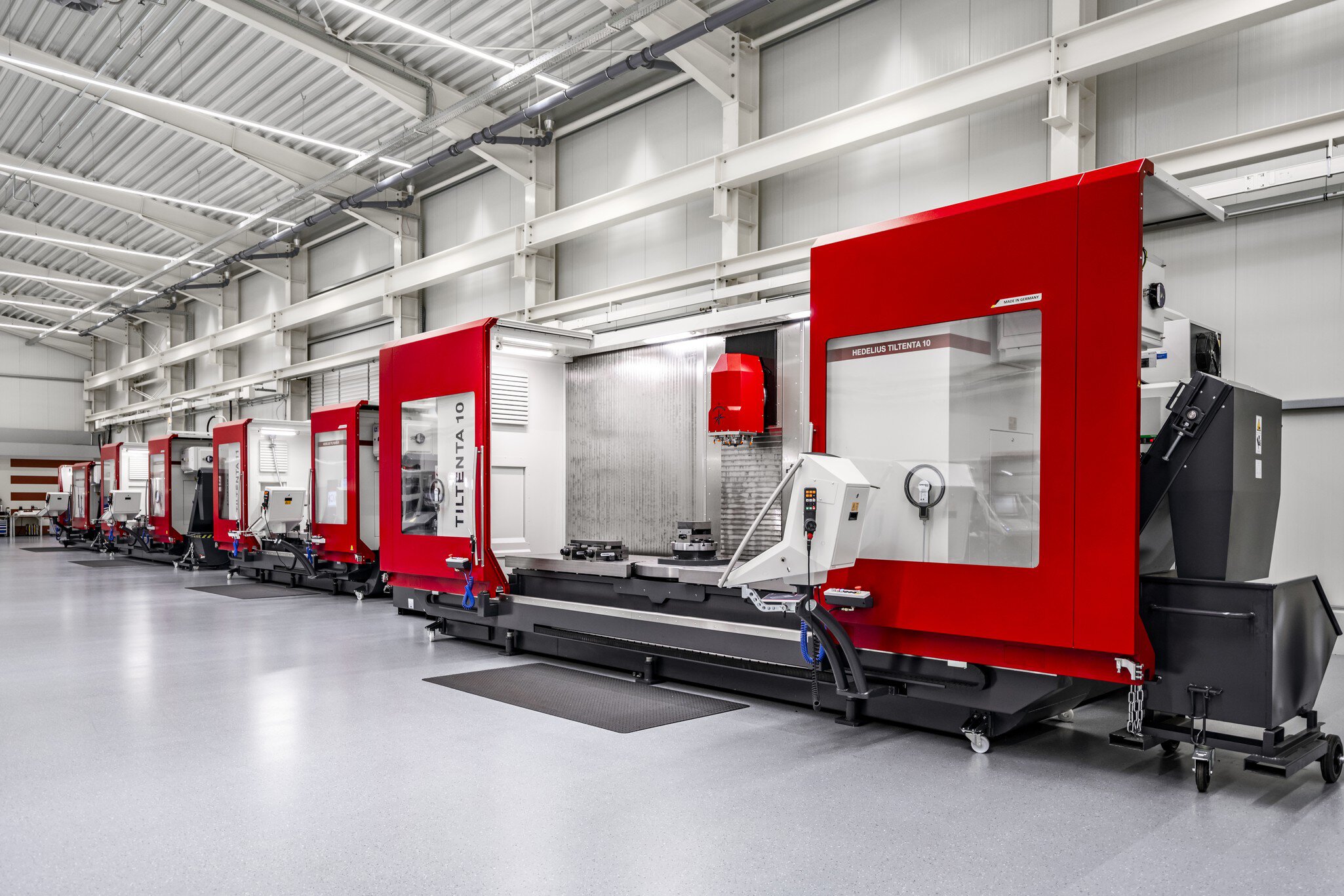

TILTENTA series

4/5-axis machining centres with swivelling main spindle.

TILTENTA 7-2000 NEO

Travel paths (X/Y/Z): 2000 x 700 x 735 mm

Travel paths: 2000 x 700 x 735 mm

Rotary table max. load: 800 kg

Rotary table load: 800 kg

Fixed machine table max. load: 2000 kg

Load fixed machine table: 2000 kg

TILTENTA 9-2600

Travel paths (X/Y/Z): 2600 x 900 x 900 mm

Travel paths: 2600 x 900 x 900 mm

Rotary table max. load: 1200 / 1800 kg

Rotary table load: 1200 / 1800 kg

Fixed machine table max. load: 3000 kg

Load fixed machine table: 3000 kg

TILTENTA 10-3600

Travel paths (X/Y/Z): 3600 x 1000 x 1000 mm

Travel paths: 3600 x 1000 x 1000 mm

Rotary table max. load: 1600 / 2200 kg

Rotary table load: 1600 / 2200 kg

Fixed machine table max. load: 5500 kg

Load fixed machine table: 5500 kg

TILTENTA 11-2600

Travel paths (X/Y/Z): 2600 x 1100 x 900 mm

Travel paths: 2600 x 1100 x 900 mm

Rotary table max. load: 1800 / 2200 kg

Rotary table load: 1800 / 2200 kg

Fixed machine table max. load: 4000 kg

Load fixed machine table: 4000 kg

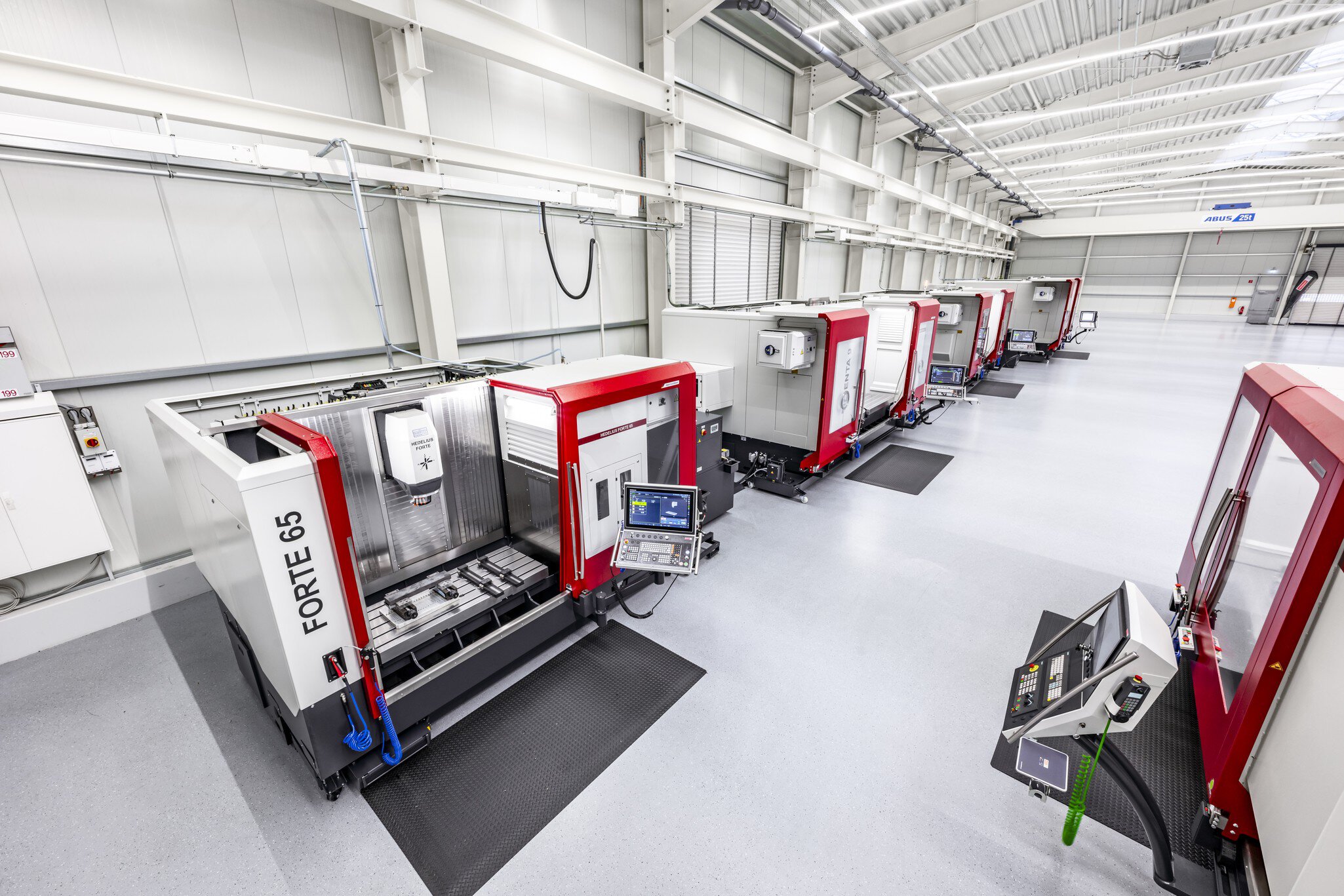

FORTE series

Vertical machining centres.

FORTE 65 Single 1320 EL

Travel paths (X/Y/Z): 1320 x 650 x 600 mm

Travel paths: 1320 x 650 x 600 mm

Contact surface: 1500 x 650 mm

Fixed machine table max. load: 1200/2000 kg

Load fixed machine table: 1200/2000 kg

MARATHON automation

Pallet and workpiece handling from HEDELIUS.

MARATHON PL406

Number of pallets: 6

Pallet dimensions: 400x400 / 400x500 mm

Palettenmaß: 400x400 / 400x500 mm

Transfer weight: 270/370 kg

MARATHON RZ430

Number of pallets: 30/34

Pallet dimensions: 400x400 mm

Palettenmaß: 400x400 mm

Transfer weight: 88/110 kg

MARATHON SR518

Number of pallets: 18

Pallet dimensions: 500x500 mm

Palettenmaß: 500x500 mm

Transfer weight: 470 kg

MARATHON SR422

Number of pallets: 22

Pallet dimensions: 400x400 mm

Palettenmaß: 400x400 mm

Transfer weight: 270 kg

Foreign automations

Solutions from our partners.

BMO Platinum

Workpiece storage: Drawers

Pallet dimensions: 395x395 / 395x195 mm

Palettenmaß: 395x395 / 395x195 mm

Transfer weight: 24/50/80 kg

RoboJob Mill-Assist

Workpiece storage: Grid storage

Pallet dimensions: -

Palettenmaß: -

Transfer weight: 25 kg

Make an appointment.

"Experience the performance of our CNC technology live - whether in person on site in Meppen or from the comfort of your desk via online live streaming. Visit our technology centre and be impressed by the precision of our machining centres and automation solutions. Our experts are available to give you customised demonstrations and close your questions. Arrange a demonstration appointment now and immerse yourself in the world of HEDELIUS technology."

Learn more

Personally on site.

Experience the top performance of our CNC technology up close: We cordially invite you to visit our technology centre in Meppen and see the precision of our machining centres for yourself. Our exhibition includes a total of 11 machining centres, some with connected automation, as well as a wide range of optional features for tooling optimisation. You can also gain an insight into our production processes and get to know the people behind the HEDELIUS brand.

Online live streaming.

Experience the HEDELIUS machining centres from the comfort of your desk and arrange an online appointment. During the presentation, you will be in contact with our expert advisors via microphone and can ask any questions you may have. Individual demonstrations of the latest machining centres or test runs on the machinability of materials are just as possible as the creation of customised machine concepts as a complete solution.
