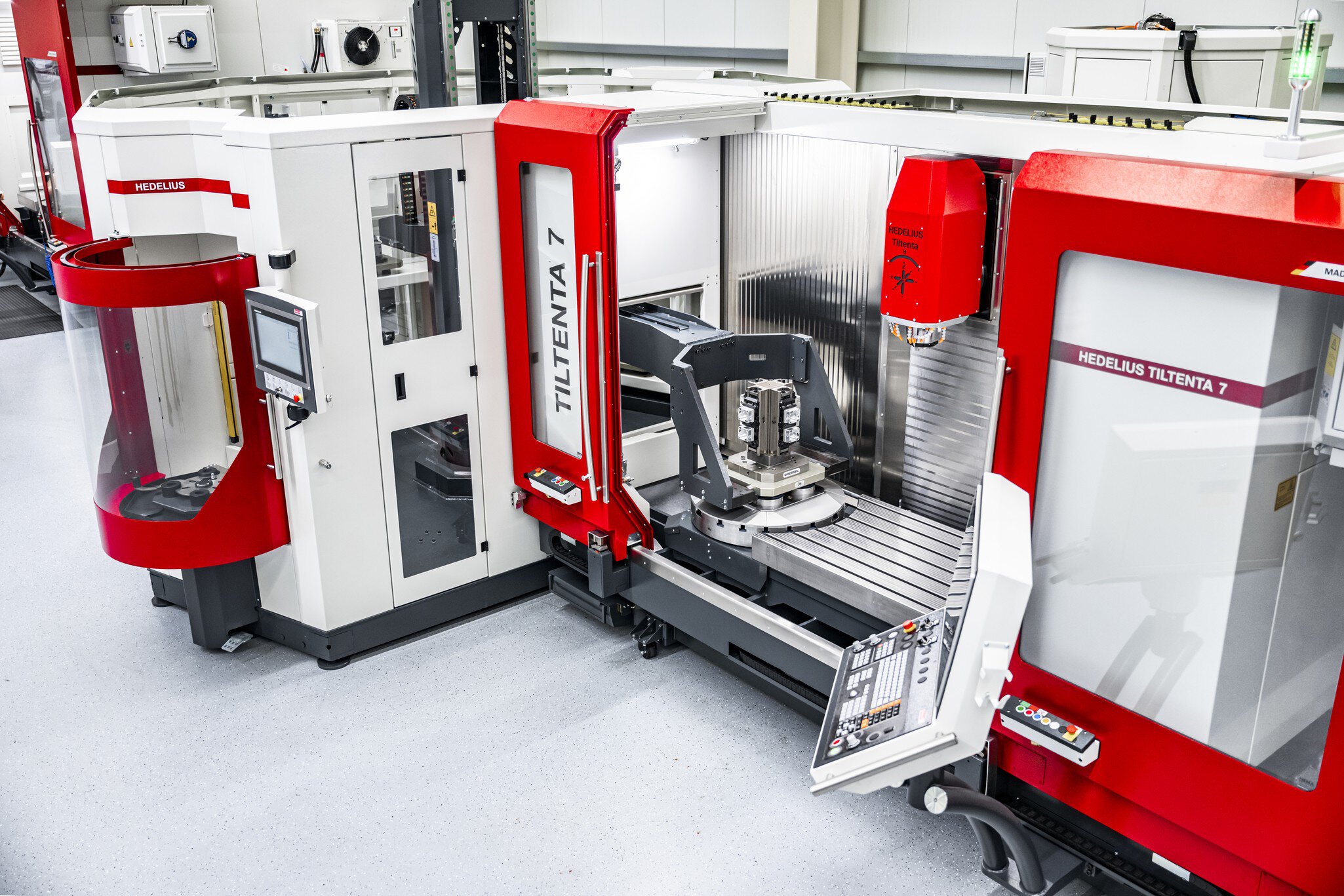

Lateral pallet loading.

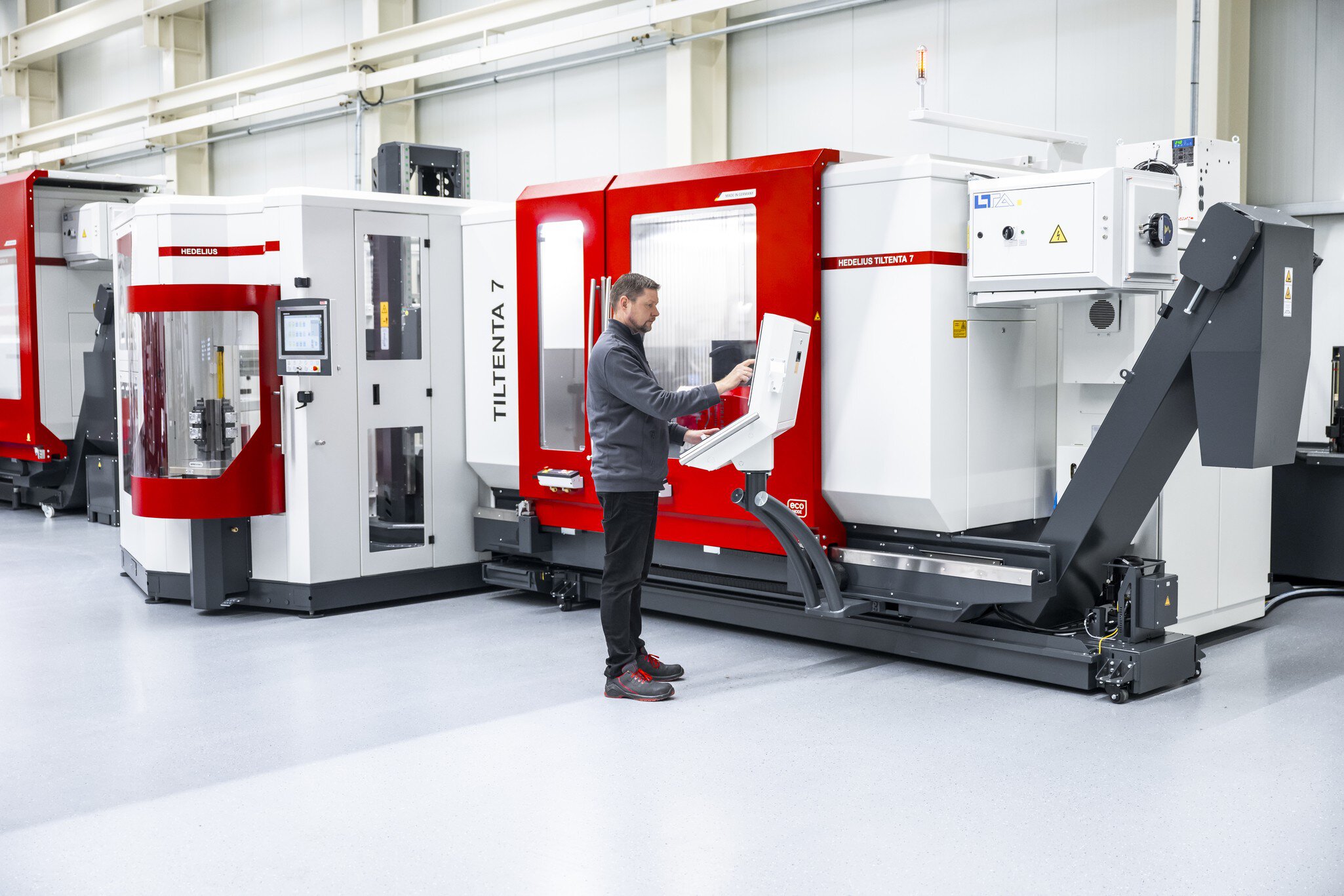

15-fold pallet magazine MARATHON SR415
The TILTENTA series is known for its flexibility, reliability and cutting performance. The new TILTENTA 7-2000 NEO offers generous travel paths of 2000 mm in the X-axis, 700 mm in the Y-axis and 735 mm in the Z-axis. The pallet magazine has 15 pallet locations for components up to 700 mm in diameter and 500 mm clamping height. The storage/retrieval station can also be rotated here, e.g. for ergonomic tooling of clamping towers or clamping pyramids. For full flexibility, the MARATHON SR415 loads the TILTENTA 7 fully automatically from the left-hand side of the machine.
Your advantages with the MARATHON SR415
- 15 pallets 400 x 400mm / 400 x 500 mm
- Clamping weight 435 kg (470 kg transfer weight)
- Collision area diameter max. 700 mm
- Clamping height max. 500 mm.
- Storage/retrieval station as standard
- Pallet mechanically locked on the storage/retrieval station for better clamping
- Query sensor for pallet on storage/retrieval station
- HEIDENHAIN control system for pallet changers
- Perfectly matched to TILTENTA 7-2000 NEO / TILTENTA 7-2600 NEO
Beratung zur Maschine
Get the best out of your production
HEDELIUS focusses on the user. This is why the MARATHON automations have been equipped with many technical details, such as the standard rotating set-up station or the pneumatic locking of the pallet on the set-up station for convenient clamping of workpieces.

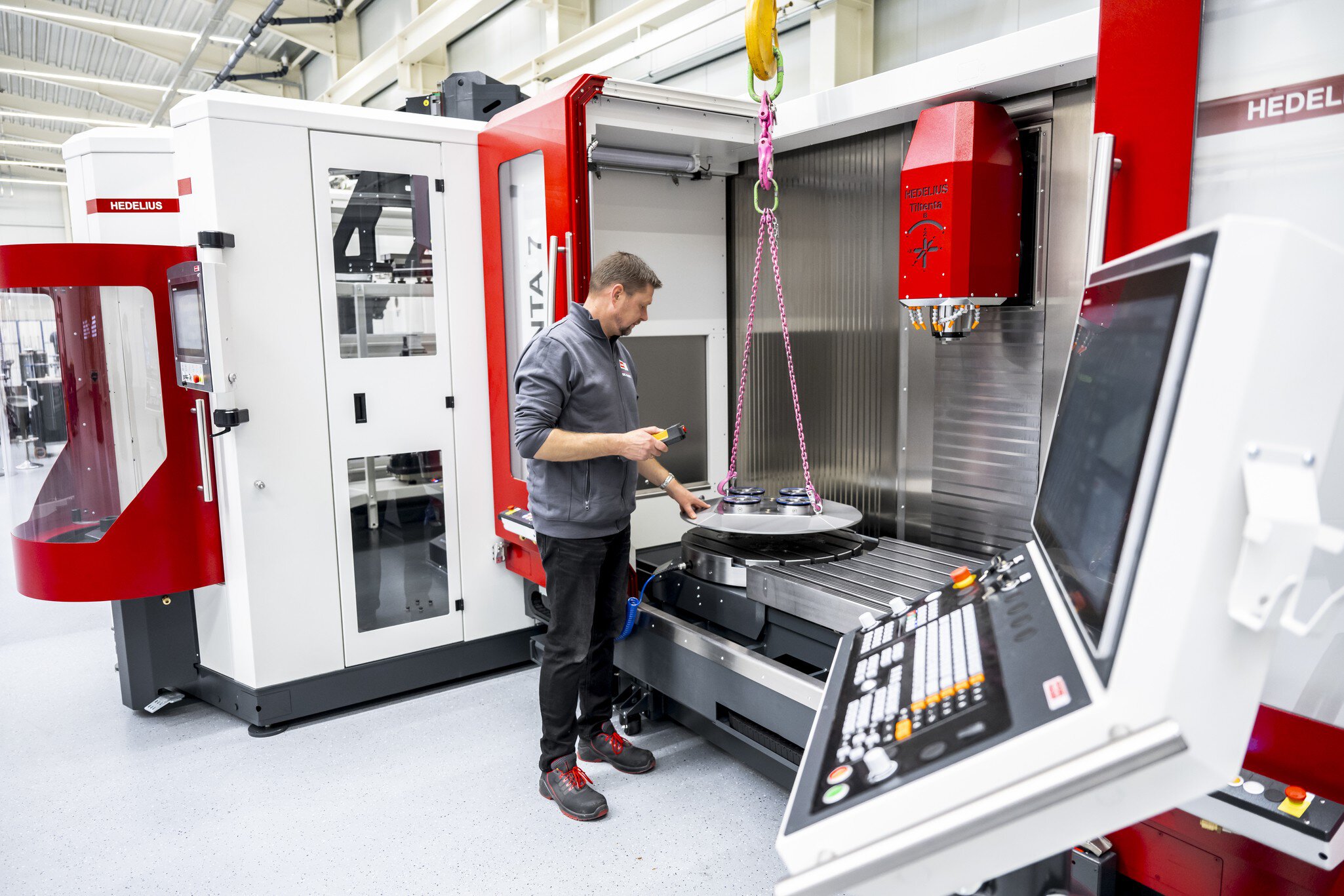

Ergonomic design.
Robust fork gripper.

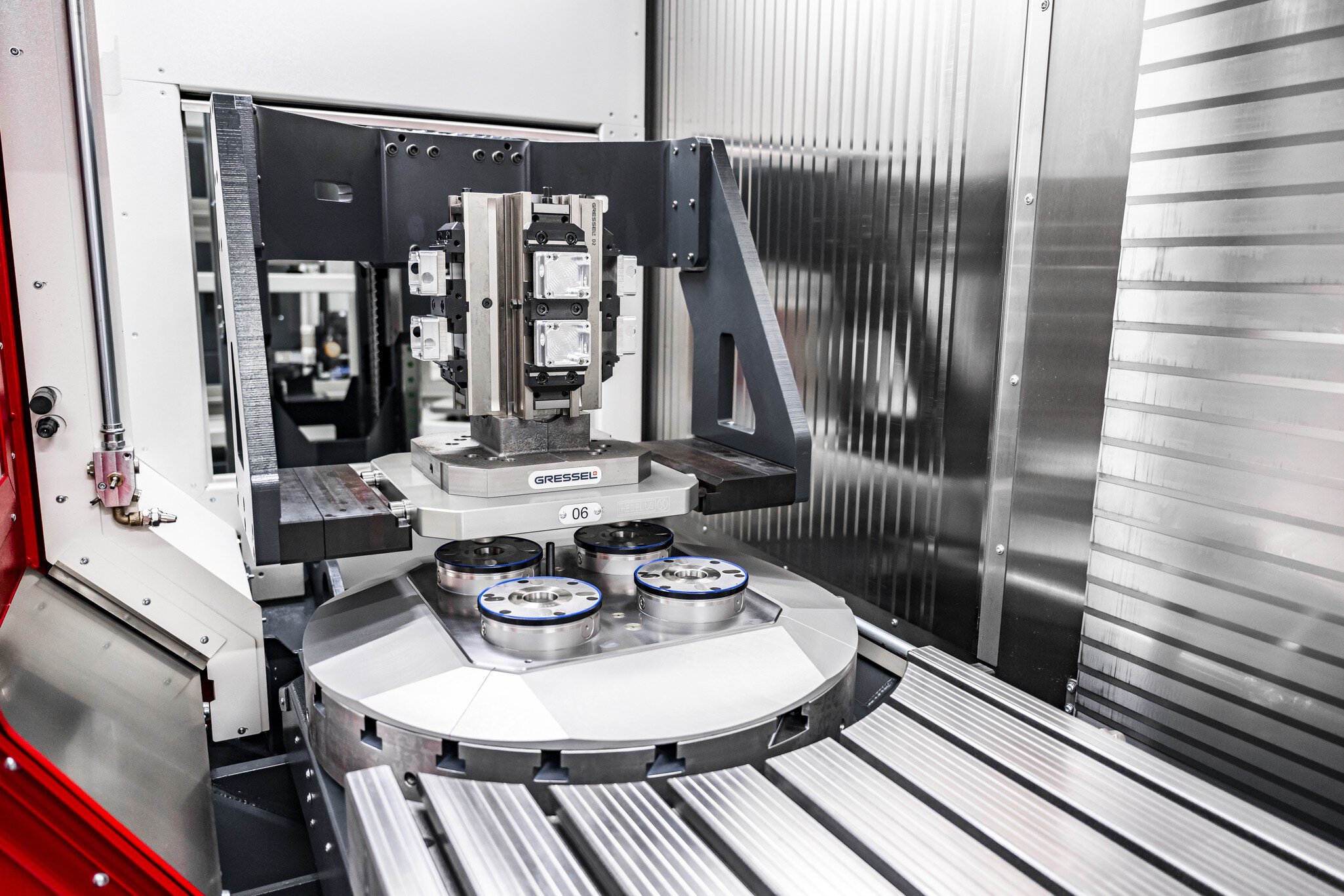

Handling large, heavy parts.
Gallery of the MARATHON SR415
