  • EROWA Leonardo Pallet handling device with multi-level magazines.

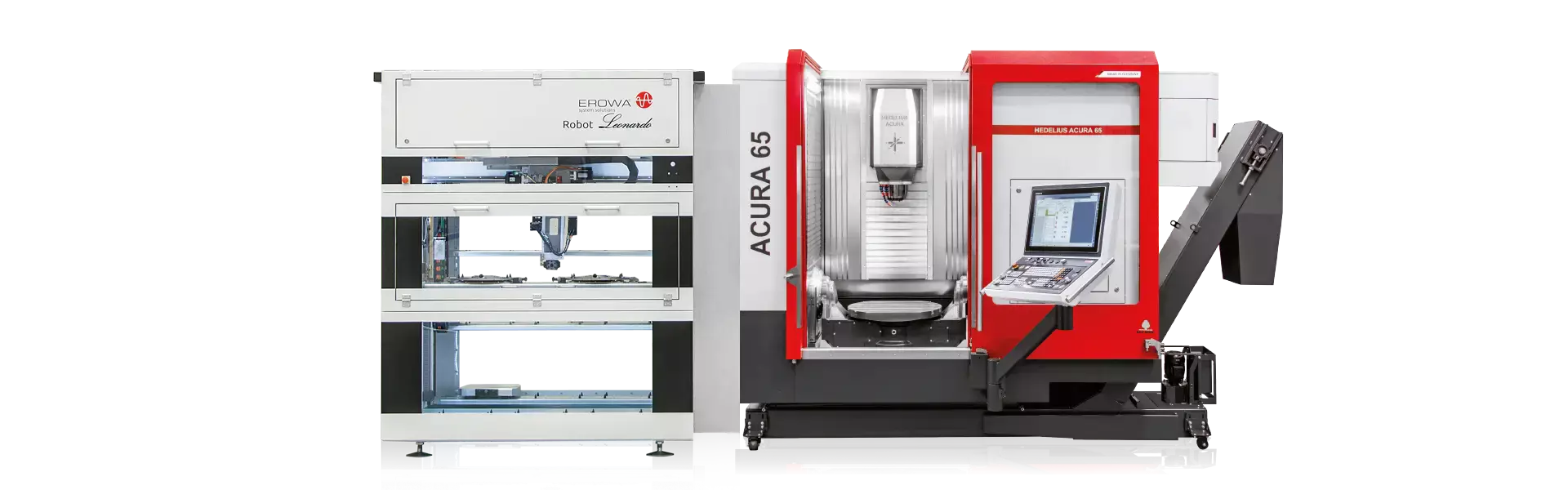

    EROWA Leonardo Paletten-Handlinggerät mit Mehrebenen-Magazinen an einer HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 65 EL
24/40
Number of pallets
24/40
Number of pallets
400x400 / 320x320 mm
Pallet dimensions
400x400 / 320x320 mm
Palettenmaß
80/120 kg
Transfer weight
80/120 kg
Transfer weight
Compare
Configure

EROWA Leonardo

The EROWA Leonardo is a pallet handling device with multi-level magazines. The transfer weight is 80 kg (optional features 120 kg). The X-axis has a long travel path and therefore also reaches into large machines. The few necessary commands are entered via a touchscreen pad. The integrated control has a high degree of autonomy. Pallets are automatically placed in an available position.

Your advantages with the EROWA LEONARDO

  • Chaotic production of different components
  • Storage and retrieval station
  • Priority-controlled feeding of the workpieces
Beratung zur Maschine

Get the best out of your production

Greater productivity, higher delivery reliability, relieved employees: there are many good reasons for automation in production.

Less land consumption.

An automated machining centre often replaces several conventional machines. Productivity per area increases.

Increased productivity.

The majority of work steps can be automated. The selection of the right automation depends on the number of pieces, batch size, running time, dimensions and weight of the workpieces to be produced.

Improved quality.

Eine Automation liefert gleichbleibende Qualität, da sie nicht müde oder abgelenkt wird.

Lower operating costs.

Quality made in Germany and a fast, partnership-based service guarantee the high availability of our machines, reduce your downtimes and secure your economic advantage.

Reduced tooling times.

Whether pallet magazines, robot systems, large tool magazines or built-in zero-point clamping systems - HEDELIUS has the expertise to reduce your tooling times.

Gallery of the EROWA Leonardo

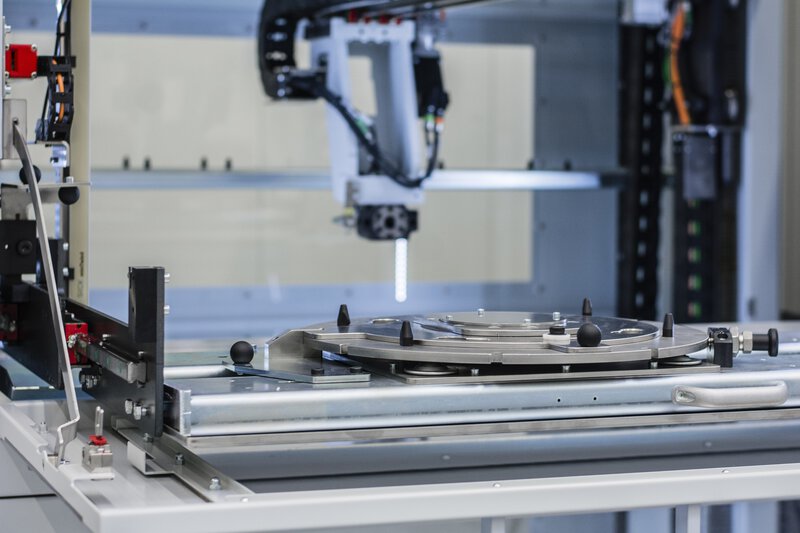

EROWA Leonardo Paletten-Handlinggerät - Detailfoto der Rüststation

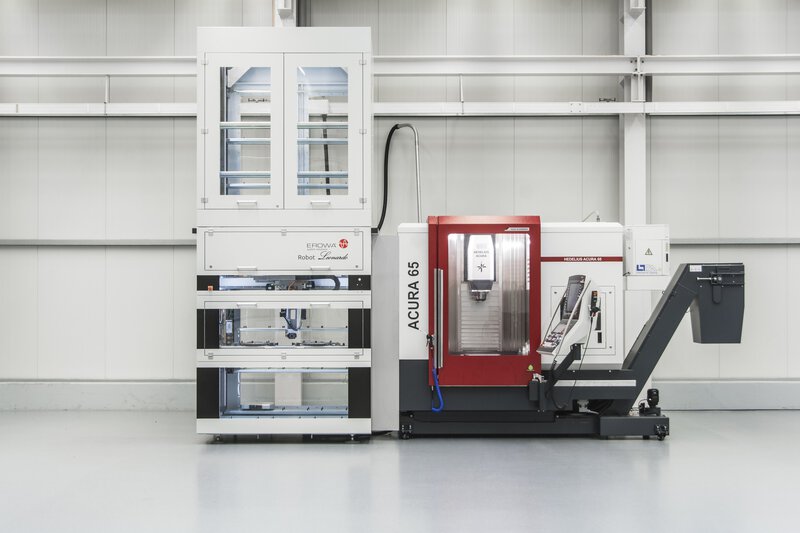

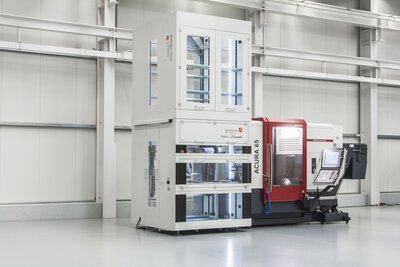

EROWA Leonardo Paletten-Handlinggerät mit Mehrebenen-Magazinen an einer HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 65 EL
EROWA Leonardo Paletten-Handlinggerät mit Mehrebenen-Magazinen an einer HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 65 EL - mit geöffneter Rüststation

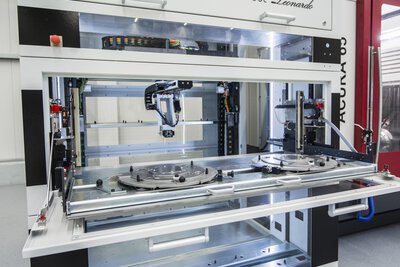

EROWA Leonardo Paletten-Handlinggerät mit Mehrebenen-Magazinen an einer HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 65 EL - Detailfoto einer geöffneten Rüststation

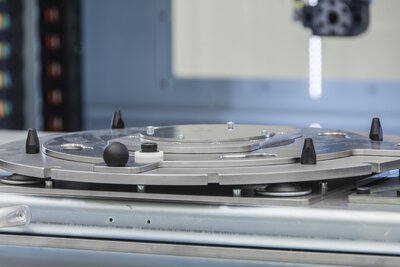

EROWA Leonardo Paletten-Handlinggerät - Detailfoto der Rüststation

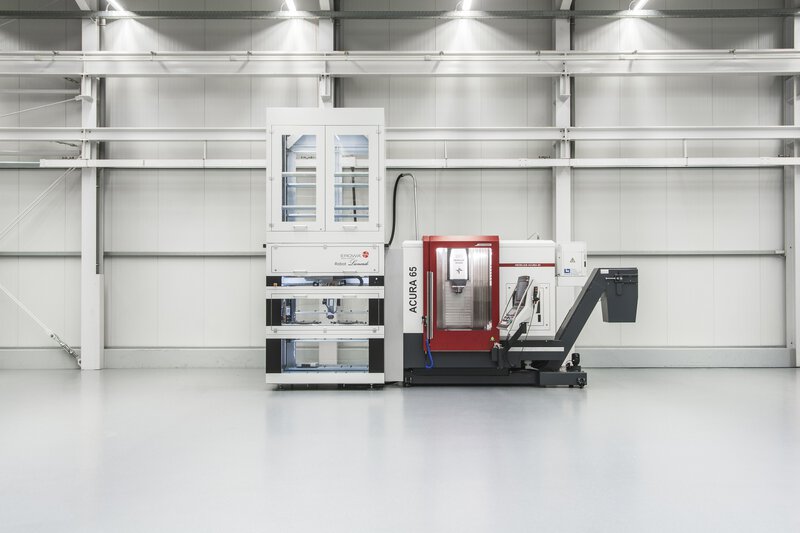

EROWA Leonardo Paletten-Handlinggerät mit Mehrebenen-Magazinen an einer HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 65 EL

Choose your compatible CNC machining centre.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 50 EL
Travel paths (X/Y/Z)
Travel paths
500 x 550 x 550 mm
Dimensions rotating/swivelling table
Rotating table dimensions
Ø 500x430 mm
Load rotating/swivelling table max.
Turntable load
300 kg
HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 65 EL
Travel paths (X/Y/Z)
Travel paths
700 x 650 x 600 mm
Dimensions rotating/swivelling table
Rotating table dimensions
Ø 650x540 mm
Load rotating/swivelling table max.
Turntable load
500 kg
HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 85 EL
Travel paths (X/Y/Z)
Travel paths
900 x 850 x 700 mm
Dimensions rotating/swivelling table
Rotating table dimensions
Ø 850x750 mm
Load rotating/swivelling table max.
Turntable load
1000 kg
Additional equipment.
Expand your automation system.

Additional equipment.

Expand your automation system.

STANDBY magazine
HEDELIUS STANDBY Magazin für bis zu 264 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren
HEDELIUS STANDBY Magazin für bis zu 180 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

Chip press

This is your new automation solution made in Germany.

EROWA Leonardo
Number of pallets
Number of pallets
24/40
Pallet dimensions
Palettenmaß
400x400 / 320x320 mm
Transfer weight
Transfer weight
80/120 kg

Set-up options

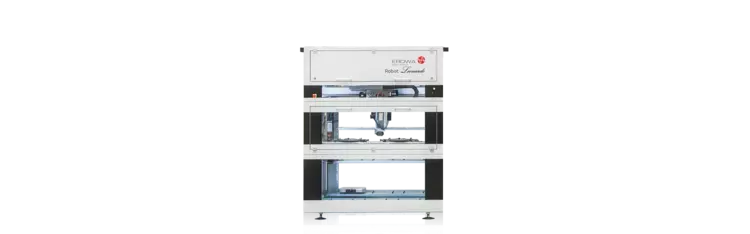

EROWA Leonardo Paletten-Handlinggerät mit Mehrebenen-Magazinen

You are interested in a new automation system with a HEDELIUS machining centre. We will be happy to make you an offer, e.g. for a CNC machining centre, an automation solution, etc. from HEDELIUS Maschinenfabrik GmbH. We would be happy to demonstrate the output of our CNC machining centres in a practical demonstration or via video livestream.
