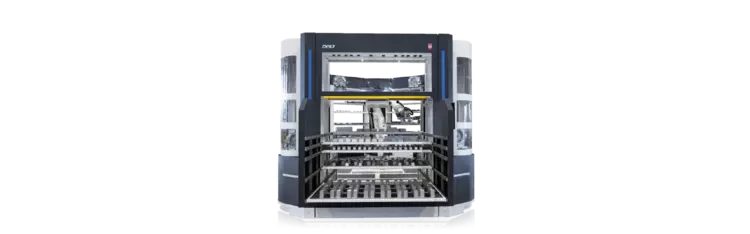

BMO Titanium

The Titanium model has up to 100 pallet magazine locations and two pallet loading stations to process workpieces or pallets in combination. Robots weighing 180 kg or 225 kg are available to ensure that even heavy workpieces can be processed on pallets. To remove the high chip volume, the machines in the ACURA series can be equipped with special accessories such as work area rinsing and alternative chip conveyors.

Your advantages with the BMO TITANIUM

Loading of one or two CNC machines with a robot
6-axis robot with a maximum load capacity of 180 kg
Loading of standard pallets
Two pallet loading stations that can be closed independently of each other
Refilling products and pallets during operation
Capacity for 50 pallets (395x395 mm) to 100 pallets (395x195 mm)
Optional product loading module
Max. 7 robust product drawers for the product module
Many different gripping options
Variable product heights thanks to freely divisible drawer system

Beratung zur Maschine

Get the best out of your production

Greater productivity, higher delivery reliability, relieved employees: there are many good reasons for automation in production.

Less land consumption.

An automated machining centre often replaces several conventional machines. Productivity per area increases.

Increased productivity.

The majority of work steps can be automated. The selection of the right automation depends on the number of pieces, batch size, running time, dimensions and weight of the workpieces to be produced.

Improved quality.

Eine Automation liefert gleichbleibende Qualität, da sie nicht müde oder abgelenkt wird.

Lower operating costs.

Quality made in Germany and a fast, partnership-based service guarantee the high availability of our machines, reduce your downtimes and secure your economic advantage.

Reduced tooling times.

Whether pallet magazines, robot systems, large tool magazines or built-in zero-point clamping systems - HEDELIUS has the expertise to reduce your tooling times.

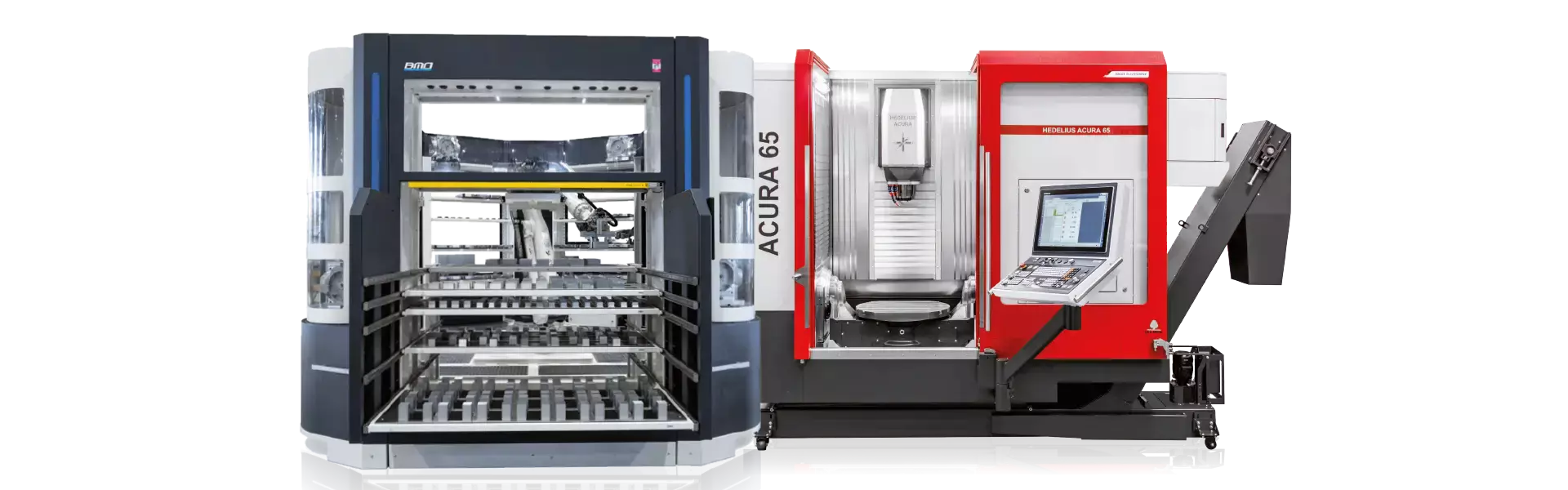

Choose your compatible CNC machining centre.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

Additional equipment.

Expand your automation system.

Additional equipment.

Expand your automation system.

STANDBY magazine

HEDELIUS STANDBY Magazin für bis zu 180 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 180 Capacity: 180

HEDELIUS STANDBY Magazin für bis zu 264 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 264 Capacity: 264

Chip press

chip press

The chip press separates the chips from the cooling lubricants and compresses them into clean, manageable briquettes. For example, 300 litres of chips can be compressed into a few dozen briquettes. This corresponds to a volume reduction of approx. 80 %.

This is your new automation solution made in Germany.

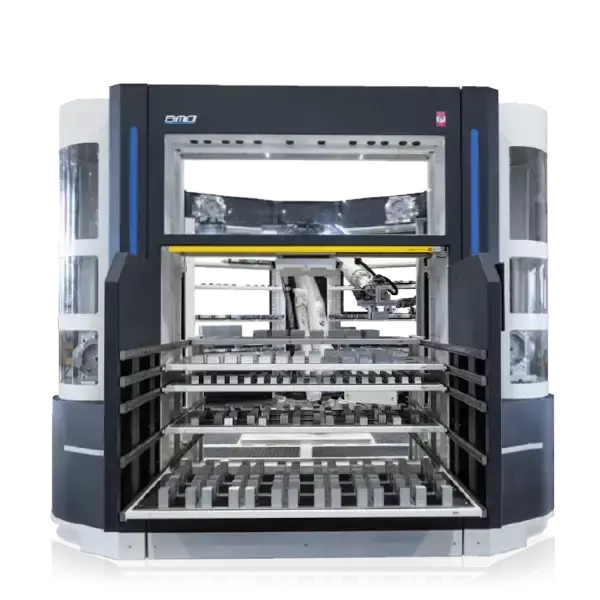

BMO Titanium

Workpiece storage

Drawers

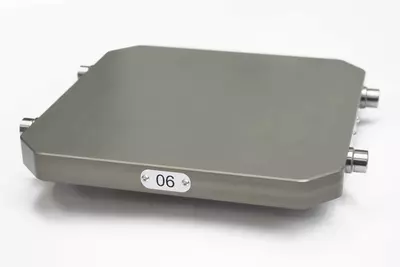

Pallet dimensions

Palettenmaß

395x395 / 395x195 mm

Transfer weight

180/225 kg

Set-up options

STANDBY magazine 180

STANDBY magazine 264

chip press

You are interested in a new automation system with a HEDELIUS machining centre. We will be happy to make you an offer, e.g. for a CNC machining centre, an automation solution, etc. from HEDELIUS Maschinenfabrik GmbH. We would be happy to demonstrate the output of our CNC machining centres in a practical demonstration or via video livestream.
