Multi-pallet magazine system MARATHON RZ430

With up to 34 pallets, the MARATHON RZ430 multi-pallet magazine is ideal when single parts need to be produced as repeat parts or small to medium series. Pallet handling is performed by a 6-axis YASKAWA robot with a load capacity of 88 or optionally 110 kg. Two pull-out storage/retrieval stations guarantee maximum productivity even with short program runtimes. The highlight is the MultibatchOS pallet and order management system with an 18.5" widescreen touch display. The automation system is perfectly open to the ACURA 50 and ACURA 65 5-axis machining centres.

Your advantages with the MARATHON RZ430

Up to 34 pallets 400 x 400 mm
Robot load capacity 88 kg or 110 kg
Clamping height max. 400 mm.
Two rotating storage/retrieval stations as standard

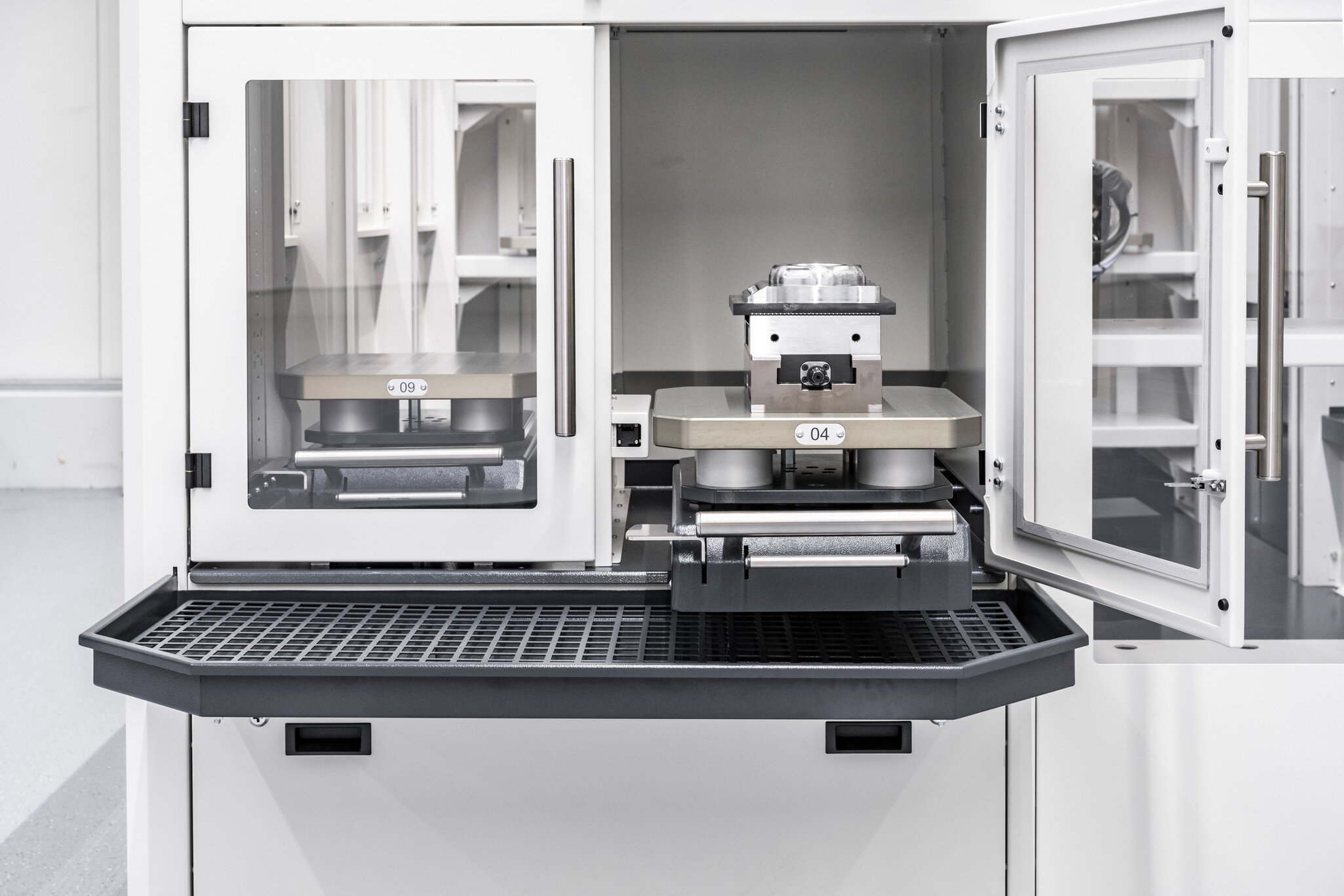

Pallet pneumatically locked on the storage/retrieval station for better clamping
MultibatchOS order management
Operating without robot programming knowledge

Beratung zur Maschine

Get the best out of your production

HEDELIUS focusses on the user. This is why the MARATHON automation systems have been equipped with many technical details, such as the standard rotating set-up station or the pneumatic locking of the pallet on the set-up station for convenient clamping of workpieces.

Highest productivity.

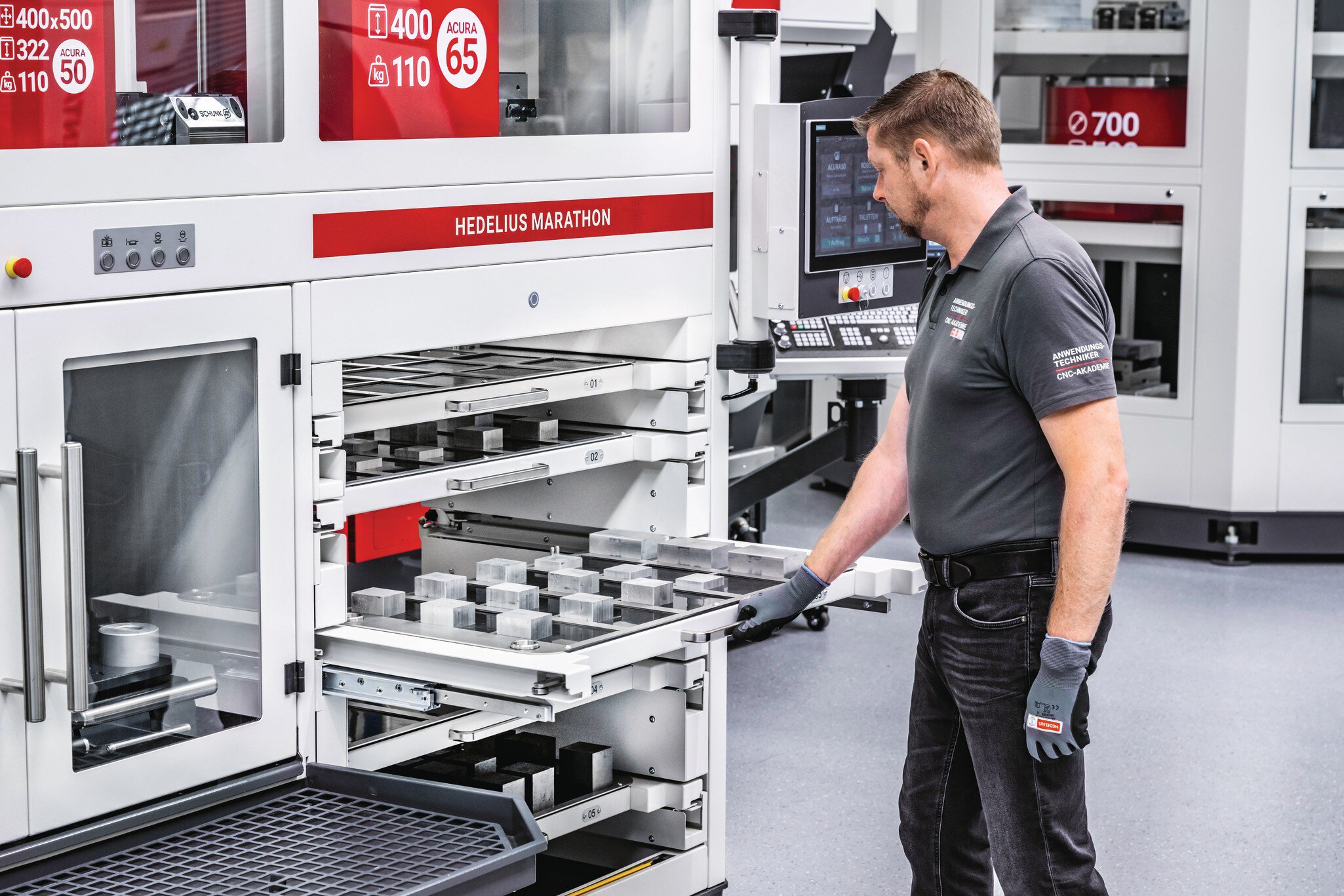

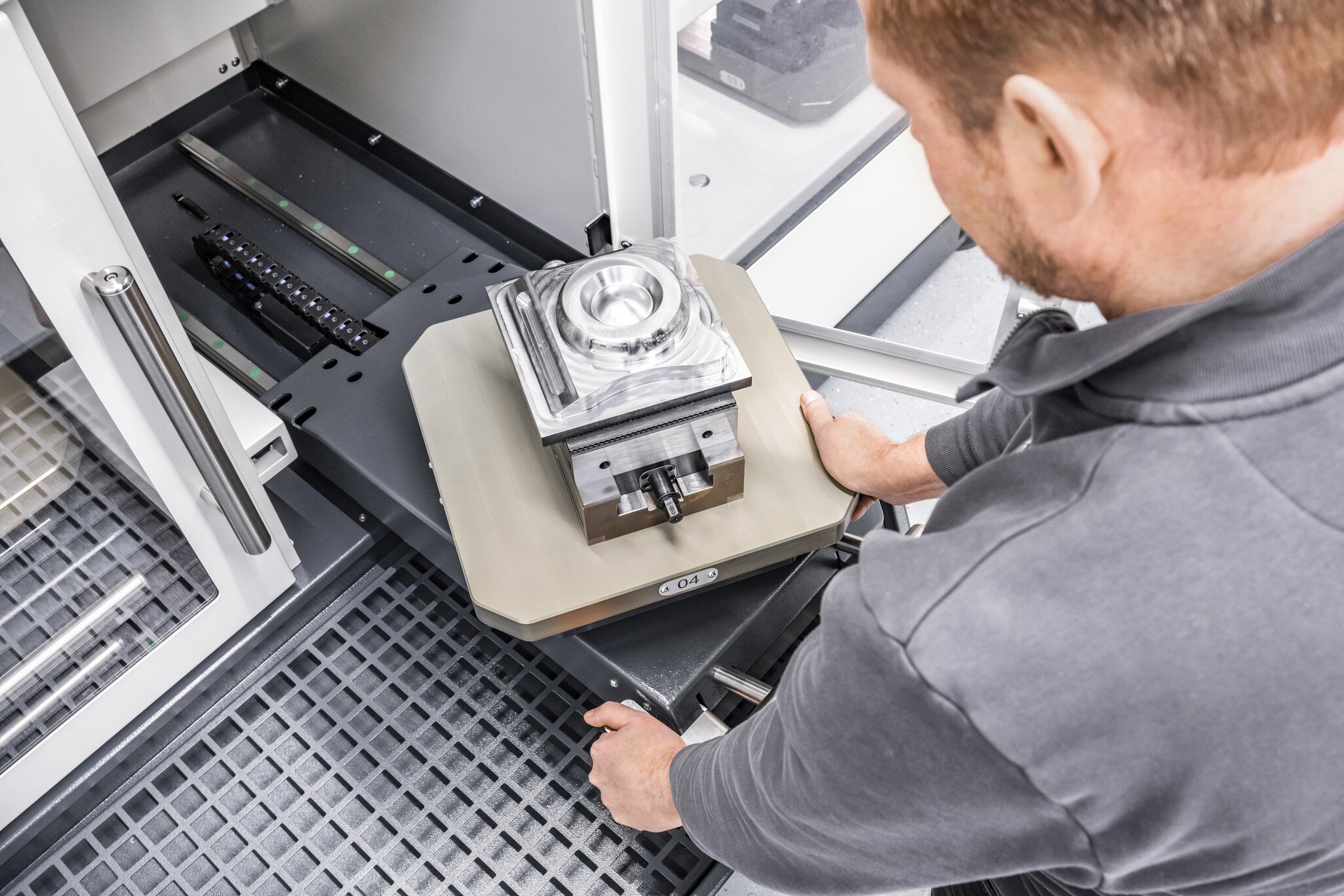

Two pull-out storage/retrieval stations guarantee maximum productivity, even with short program runtimes. The pallets are pneumatically locked in place on the Loading station, which makes clamping easier for the operator.

Powerful robot.

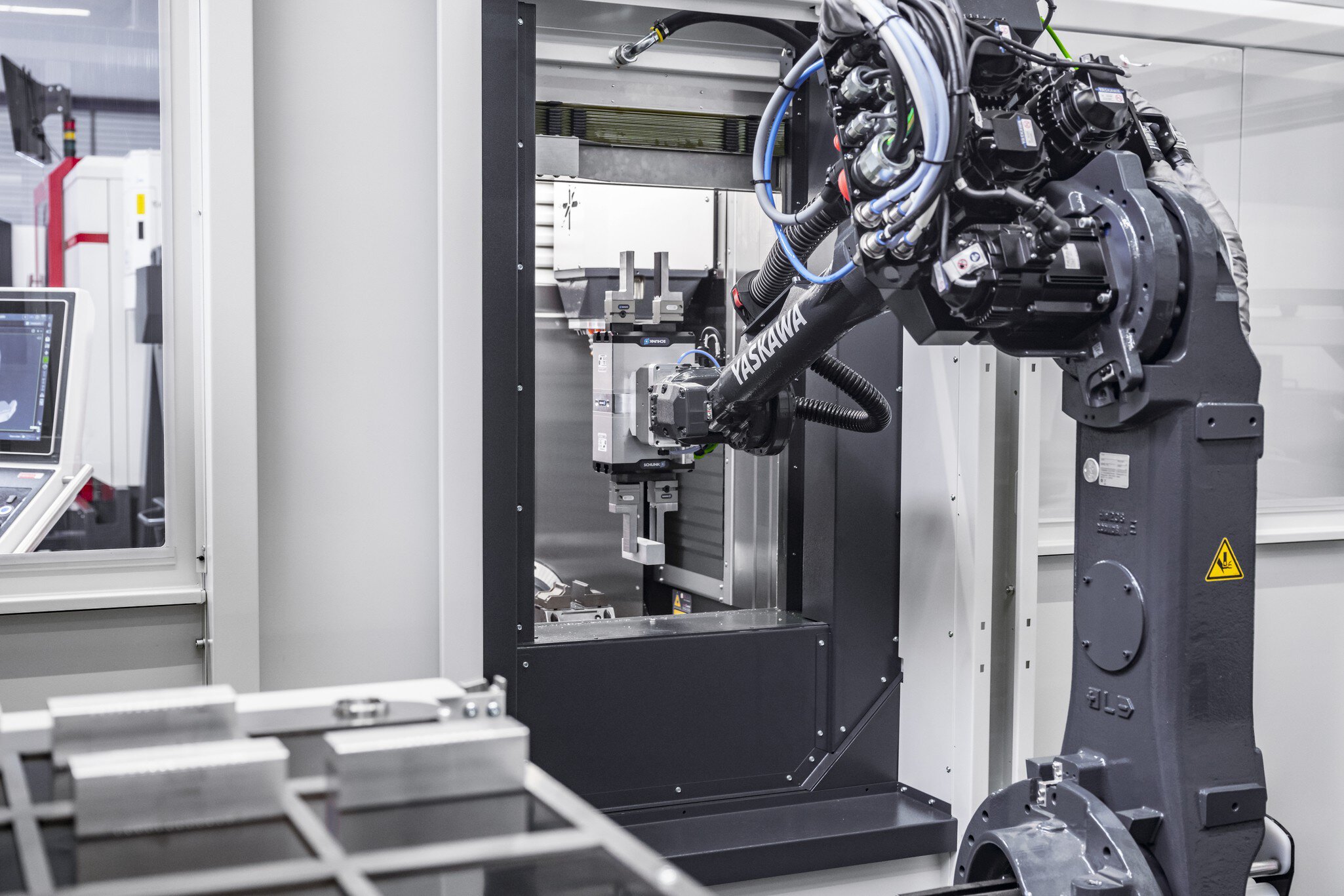

Pallet handling is performed by a 6-axis YASKAWA robot with a load capacity of 88 kg or optionally 110 kg.

Maximum storage capacity.

The multi-pallet magazine offers up to 34 storage locations for 400 x 400 mm pallets. This means that the system is particularly advantageous for processing single parts, repeat parts and small and medium-sized series.

A well-rehearsed team.

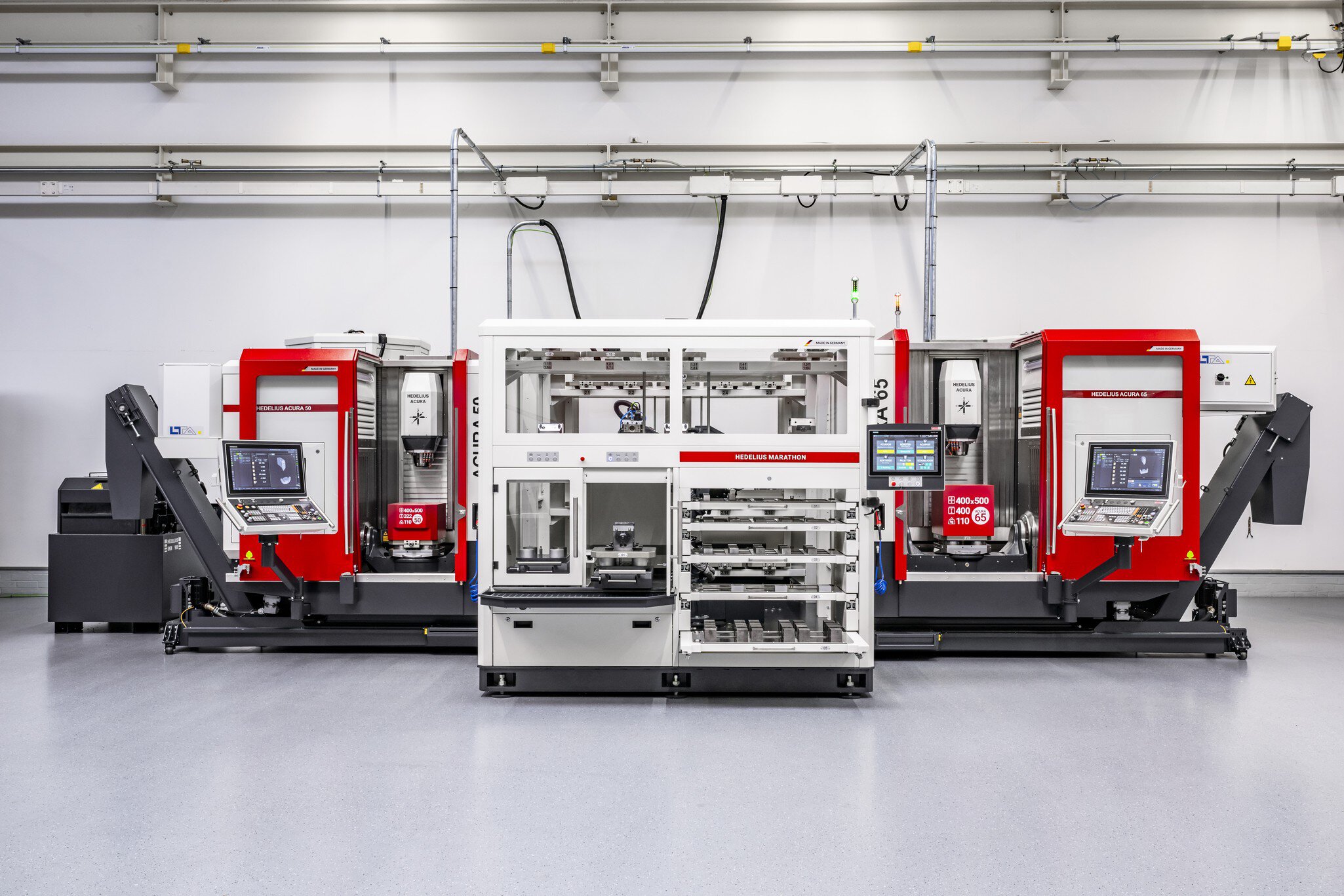

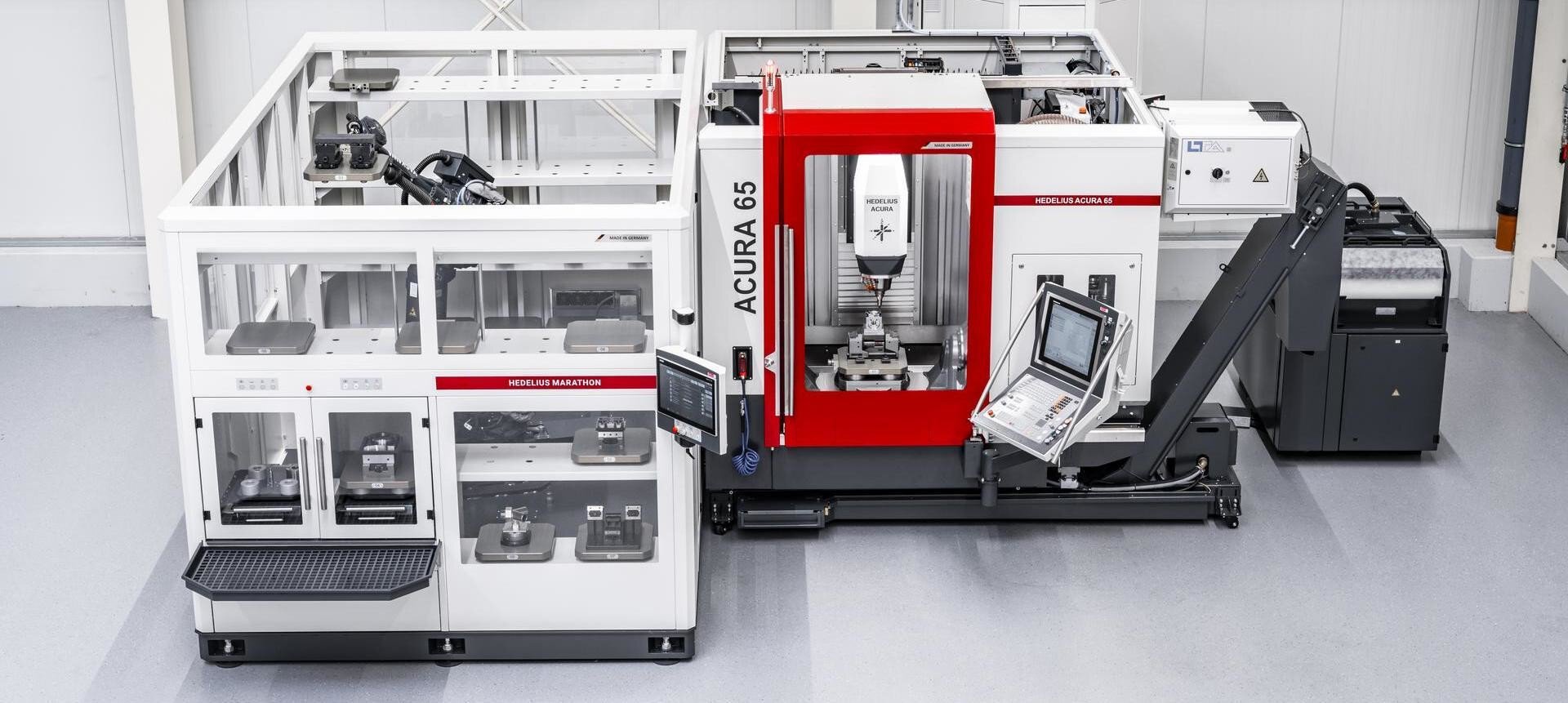

The automation system is perfectly open to the ACURA 50 and ACURA 65 5-axis machining centres. Connected in a linear interlinking system, the robot cell can load up to two machining centres.

Simple operating.

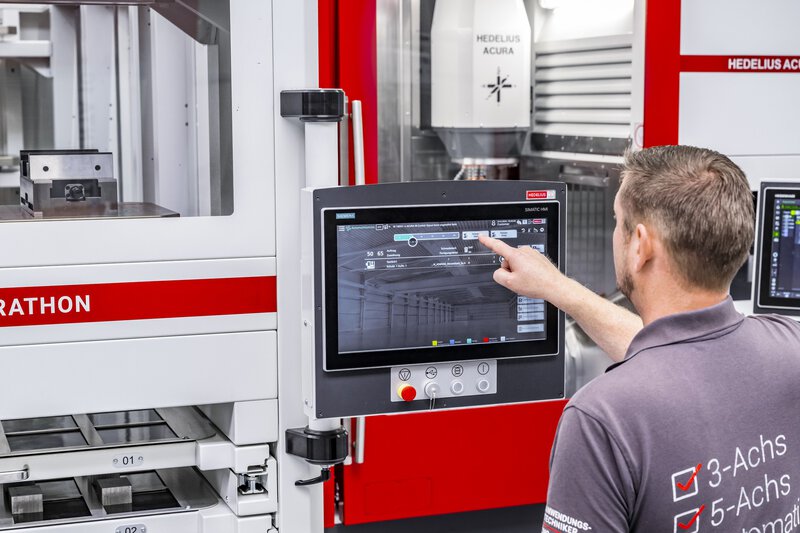

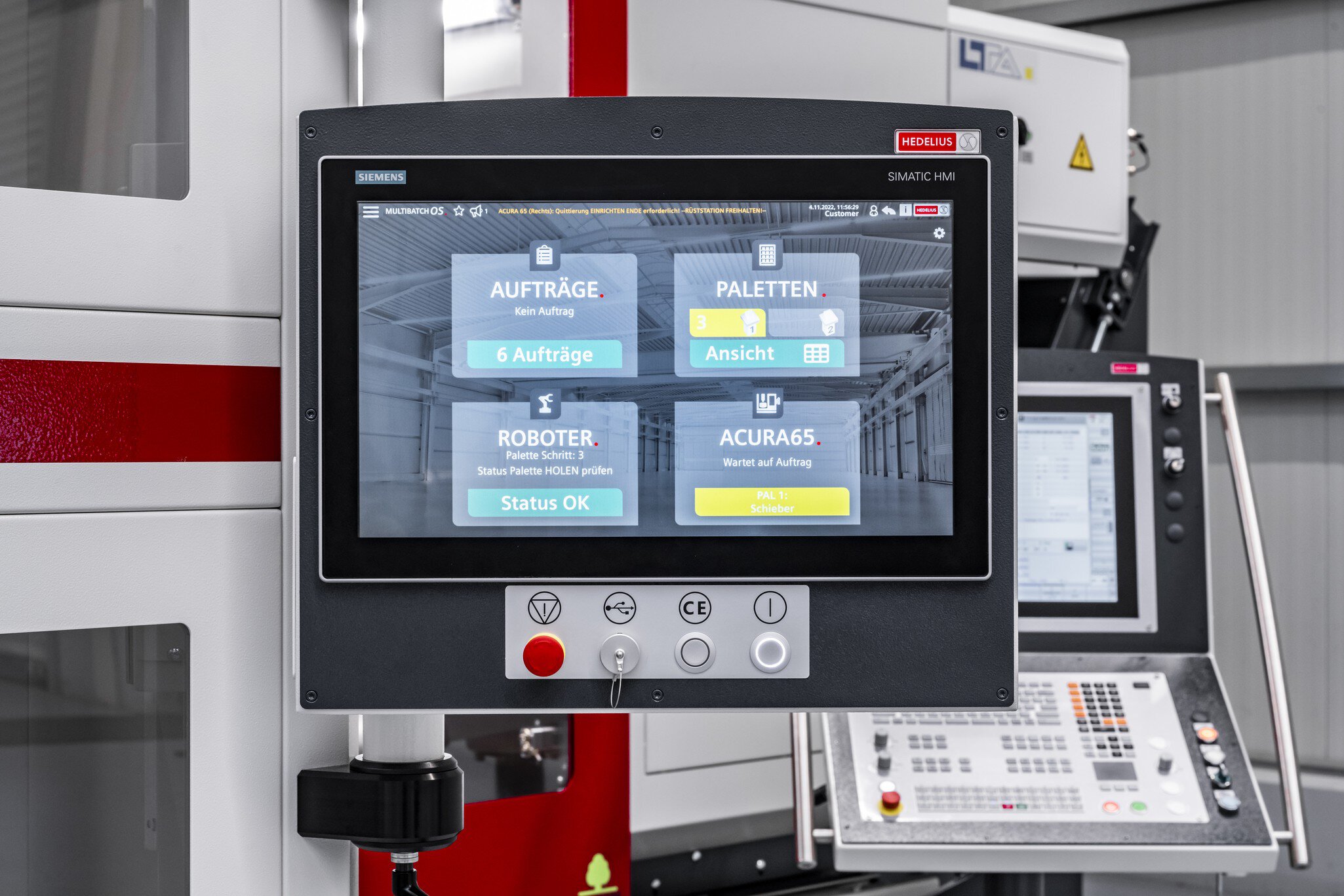

The MultibatchOS pallet and order management system with an 18.5" widescreen touch display offers user-friendly and intuitive operating. Robot programming skills are not required.

More flexibility with a hybrid solution.

You can choose whether you want to use the robot cell exclusively for handling pallets or expand the automation solution to include product drawers. The robot arm can load the machining centre with pallets as well as workpieces.

Gallery of the MARATHON RZ430

Choose your compatible CNC machining centre.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

Additional equipment.

Expand your automation system.

Additional equipment.

Expand your automation system.

Pallets

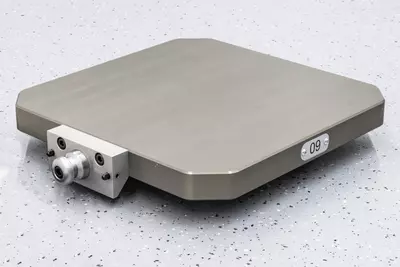

Workpiece pallet 400x400x38mm for robot coupling NSR160 A50

The 400 x 400 x 38 mm pallets (20 kg) are made of hard anodised aluminium and can hold a clamping weight of up to 90 kg. A maximum transfer weight of 110 kg is achieved for the MARATHON RZ430.

STANDBY magazine

HEDELIUS STANDBY Magazin für bis zu 180 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 180 Capacity: 180

HEDELIUS STANDBY Magazin für bis zu 264 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 264 Capacity: 264

Chip press

chip press

The chip press separates the chips from the cooling lubricants and compresses them into clean, manageable briquettes. For example, 300 litres of chips can be compressed into a few dozen briquettes. This corresponds to a volume reduction of approx. 80 %.

This is your new automation solution made in Germany.

MARATHON RZ430

Number of pallets

30/34

Pallet dimensions

Palettenmaß

400x400 mm

Transfer weight

88/110 kg

Set-up options

Workpiece pallet 400x400x38mm for robot coupling NSR160 A50

STANDBY magazine 180

STANDBY magazine 264

chip press

You are interested in a new automation system with a HEDELIUS machining centre. We will be happy to make you an offer, e.g. for a CNC machining centre, an automation solution, etc. from HEDELIUS Maschinenfabrik GmbH. We would be happy to demonstrate the output of our CNC machining centres in a practical demonstration or via video livestream.
