Machining centre with rotating/swivelling table: ACURA 85

The ACURA 85 offers greater precision on a smaller footprint. The constantly guided Y-axis in conjunction with the solidly ribbed feed carriages made of grey cast iron reduce vibrations. The rotating/swivelling table is bearing-mounted on both sides and the Z-axis is specially protected against heat distortion. These and many other details increase the quality of machining, while the dimensions of the 5-axis machining centre are extremely small thanks to the special design.

Your advantages with the ACURA 85

Large travel paths of 900 x 850 x 700 mm (x/y/z)

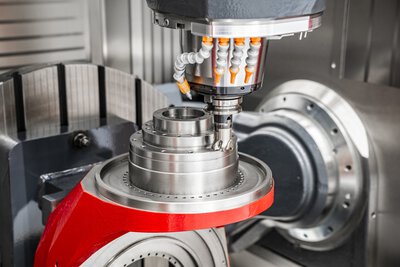

Rotating/swivelling table with bearings on both sides for high-precision cutting performance
80-place tool magazine can be operated from the front
Complete enclosure of the work area for a clean working environment
Contact surface moved to the front for improved accessibility
Low overall height, low installation depth
5-axis simultaneous milling optional

Arrange a consultation

HEDELIUS 5-Achs-Bearbeitungszentrum ACURA 85

Comparison of the machines.

This is where the machine comparison is created: Add further machines to compare performance parameters.

Gallery.

The basis of precision.

Many factors play a role in achieving a certain workpiece accuracy. On the one hand, there are the machines themselves. The type, components and software all have an influence on the machining result. However, there are also many accompanying factors to consider, from the location of the machine to measuring equipment, clamping devices and tools through to the qualifications of the employees.

Accuracy of HEDELIUS machining centres

Sophisticated type.

Designed as universal machining centres for a wide range of applications in machine and tool construction, HEDELIUS places great weight on stability and accuracy during the design phase. The result of this process was the special HEDELIUS type with the constantly cantilevered Y-axis and the resulting high rigidity and precision over the entire travel range of the Y-axis and Z-axis.

In-house production.

Critical assemblies such as travelling columns, beds and rotating/swivelling table units are manufactured and measured in-house at HEDELIUS. As a result, we not only always keep an eye on quality, but also recognise the possibilities and limits of modern chipping in day-to-day use. This process knowledge flows permanently into improving our products and advising our customers.

Guides and straightness.

HEDELIUS uses pre-aligned roller guides from German and Swiss manufacturers. At the end of assembly, the positioning precision, repeat precision, straightness and backlash of the linear axes are finally checked and documented using a laser interferometer. The positioning accuracy of the linear axes in accordance with ISO 230-2 is regularly less than 6 µm.

IT6 circular accuracy.

The Renishaw circularity test has established itself as a test method for the accuracy of machining centres. The measurement provides information on the interaction between two linear axes and the accuracy of a circular movement. The slip-stick-free roller guides in combination with direct path measuring systems and high angular accuracy enable the milling of fits in a quality of IT6, which reduces production times and the number of spindle tools required.

Measuring systems on round axes.

The accuracy of the measuring systems has a significant influence on the angularity and parallelism of surfaces and bores. HEDELIUS uses direct angle encoders in the centre of each rotational axis in the integrated rotary tables, the swivel spindle drives and the rotating/swivelling table units. As an option, laser-based angle measurement devices measure the positioning accuracy of rotational axes with a resolution of ±1" and calibrate the axes for maximum positioning accuracy.

Long-term precision.

HEDELIUS only uses direct linear measurement devices for position detection of the X-axis, Y-axis and Z-axis. This means that the position control loop encompasses the entire feed mechanism. This is referred to as "closed loop" operation. Transmission errors in the mechanics can thus be detected by the linear measurement device on the feed axis and corrected by the control electronics.

Temperature compensation.

HEDELIUS equips its machining centres with spindle coolers to dissipate the heat generated in the milling spindle. The cooling system already achieves increased thermal stability as standard. However, as not all of the heat can be dissipated by the spindle cooling, HEDELIUS optionally installs temperature sensors on the spindle, travelling column and, in some cases, on the rotary axes in order to compensate for structural displacements via the control system.

Choose your CNC control system.

What is usually considered special accessories is standard at HEDELIUS: All machining centres are equipped with a CNC full keyboard, colour monitor, spindle feed overdrive and original software as standard. State-of-the-art control technology from SIEMENS or HEIDENHAIN guarantees maximum operating convenience and unrestricted functionality. You decide which system you want to work with.

Fit for your desired control system with seminars from the CNC Academy.

Heidenhain TNC 7

Die neue HEIDENHAIN Steuerung TNC 7 setzt auf intuitive, aufgabenorientierte und individuelle Steuerung. Durch eine maßgeschneiderte Bedienoberfläche wird der Anwender in jeder Situation optimal unterstützt. Vertraute Funktionen der HEIDENHAIN Programmierung sind um smarte Funktionen ergänzt. Die Bedienelemente der TNC-Tastatur bleiben erhalten und bieten so eine solide Basis für die Steuerung der HEDELIUS Bearbeitungszentren.

Sinumerik ONE

Die SIEMENS SINUMERIK ONE Steuerung erweckt Ihre Ideen zum Leben. SINUMERIK ONE ist das zukunftsweisende CNC System für hochproduktive HEDELIUS Bearbeitungszentren. Für ungeahnte neue Möglichkeiten, Ideen und Geschäftsmodelle. Für schnellere Innovationen durch das nahtlose Zusammenspiel von virtueller und realer Welt. Und: SINUMERIK ONE ist weit mehr als eine leistungsfähige Hardware-Innovation.

Liquid-cooled motor spindles with precision cooler.

High-output and high-torque CELOX integral motor spindles with hybrid bearing technology ensure the technological lead of HEDELIUS machining centres. In conjunction with the HSK interface, the hydromechanical tool clamping system guarantees maximum system rigidity and concentricity.

Find out all about integral motor spindles.

SK 40 / BT 40 , CELOX 14000 1/min, 117 Nm, 22 kW

SK 40 / BT 40 , CELOX 14000 1/min, 185 Nm, 37 kW

HSK A63 , CELOX 15000 1/min, 217 Nm, 50 kW

SK 40 / BT 40 / HSK A63 , CELOX 18000 1/min, 136 Nm, 35 kW

Automate your machining centre.

More productivity, higher delivery reliability, less stress on employees: there are many good reasons for automating production. HEDELIUS machining centres can be optimally automated. The automation is often attached to the side of the machine. Loading from the side means that the work area remains fully available for set-up and control work, but also, for example, for single part production during the day shift. Even crane loading of the machine is possible without restrictions. Another advantage (depending on the selected automation) is the visibility of the work area and thus optimised process control during set-up on the automation. At the same time, this solution requires little depth and can be easily integrated into an existing production line.

Advantages of automation.

Pallet automation

MARATHON RZ430

Number of pallets

Pallet dimensions

400x400x38 mm

Transfer weight

88 /110 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

MARATHON PL406

Number of pallets

Pallet dimensions

400x400x38 / 400x500x48 mm

Transfer weight

270 /370 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

MARATHON SR422

Number of pallets

Pallet dimensions

400x400x38 mm

Transfer weight

270 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

MARATHON SR518

Number of pallets

Pallet dimensions

500x500x48 mm

Transfer weight

470 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Platinum

Number of pallets

Pallet dimensions

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Iridium Hybrid

Number of pallets

Pallet dimensions

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Titanium

Number of pallets

Pallet dimensions

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Infinity

Number of pallets

Pallet dimensions

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK LIGHT 30

Number of pallets

Pallet dimensions

Transfer weight

30 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK LIGHT 60

Number of pallets

Pallet dimensions

Transfer weight

60 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK LIGHT 120

Number of pallets

Pallet dimensions

400x400x38 / 320x320x38 / 200x200x38 mm

Transfer weight

120 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

INDUMATIK 150

Number of pallets

Pallet dimensions

400x400x38 / 320x320x38 / 200x200x38 mm

Transfer weight

150 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

EROWA ERC 80

Number of pallets

Pallet dimensions

400x400x38 / 320x320x38 / 200x200x38 mm

Transfer weight

80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

EROWA Leonardo

Number of pallets

Pallet dimensions

Transfer weight

80 /120 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

EROWA ERD 150 / 500

Number of pallets

Pallet dimensions

Transfer weight

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

RoboJob Tower

Number of pallets

Pallet dimensions

Transfer weight

100 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Promro Hybrid RD

Number of pallets

Pallet dimensions

Transfer weight

25 /50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Workpiece automation

MARATHON RZ430

Workpiece handling

Pallet handling

Transfer weight

88 / 110 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Platinum

Workpiece handling

Pallet handling

Transfer weight

24 / 50 / 80 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Iridium Hybrid

Workpiece handling

Pallet handling

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Titanium

Workpiece handling

Pallet handling

Transfer weight

180 / 225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

BMO Infinity

Workpiece handling

Pallet handling

Transfer weight

180 / 225 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

RoboJob Mill-Assist

Workpiece handling

Pallet handling

Transfer weight

25 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

RoboJob Tower

Workpiece handling

Pallet handling

Transfer weight

100 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

Promro Hybrid RD

Workpiece handling

Pallet handling

Transfer weight

25 / 50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

LANG RoboTrex

Workpiece handling

Pallet handling

Transfer weight

25 / 50 kg

Storage/retrieval station

Rotatable storage/retrieval station

Multi-machine operation

How many tools do you need?

Providing the right tools is a key factor in daily production. Searching for tools, calibrating, transporting and loading the magazine tie up valuable capacity and add up to several hundred working hours over the year. Safety your economic advantage with the 152, 180 or 264-cavity standby magazine with integrated cone cleaning station.

Rationalise your production process enormously.

HEDELIUS Standard Magazin für bis zu 65/80 Werkzeuge für ACURA 65 und ACURA 85 CNC Bearbeitungszentren

Standard tool magazine

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 80

Tool length: 390 mm

80 Werkzeuge im Standard für Werkzeugaufnahme von SK40 / BT40 / HSK A63

HEDELIUS STANDBY Magazin für bis zu 180 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 180

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 180

Tool length: 330 mm

Floor space: 1340 x 1340 mm

Das STANDBY Magazin ist ein Schrankmagazin für bis zu 180 Werkzeuge, welches hinter dem Bearbeitungszentrum aufgestellt wird. Die integrierte Kegelreinigungsstation mit rotierender Reinigungsbürste, umlaufender Ölnebel-Abblasdüse und 3 Reinigungsprogrammen pflegt die Werkzeuge nachhaltig.

HEDELIUS STANDBY Magazin für bis zu 264 zusätzliche Werkzeuge für HEDELIUS CNC Bearbeitungszentren

STANDBY magazine 264

Tool fitting: SK 40 / BT 40 / HSK A63

Capacity: 264

Tool length: 330 mm

Floor space: 1660 x 1660 mm

Das STANDBY Schrankmagazin ist für bis zu 264 zusätzliche Werkzeuge ausgelegt. Die integrierte Kegelreinigungsstation pflegt die Werkzeuge nachhaltig.

Maximise process reliability.

Optimised cleaning technology and chip removal.

Maximise process reliability.

Optimised cleaning technology and chip removal.

In addition to manually activated blow-off and rinsing pistols for removing chips and blowing workpieces dry, the CNC machining centres can also be equipped with additional rinsing nozzles, which increases process reliability, particularly in automated manufacturing and aluminium production.

Chip flushing

Chip flushing device

Zusätzliche Spänespülung an der rechten und linken Maschinenseite inkl. verstärkter Spülpumpe.

rinsing pistol

Ausrüstung der Maschine mit einer Spülpistole (3 bar, 20l/min), komplett mit Kühlmittelpumpe und Haltevorrichtung.

Dust protection cladding

dust protection cladding

Vollkapselung des hinteren Maschinenraumes zum Staubschutz des Fahrständers und der kompletten X-Achse.

Emulsion mist extraction

LTA 3001 exhaust air filters (right)

Elektrostatischer LTA Abluftfilter (1200 m³/h) inkl. mechanischem Vorfilter/Nachfilter und elektrostatischem Filter. Rechts angebaut an der Vollverkleidung.

Process control with side-hung window

side-hung window

Ausrüstung der Schiebetürscheibe mit einem Drehfenster.

Durchmesser: 232 mm (Sichtfeld)

Chip press

chip press

The chip press separates the chips from the cooling lubricants and compresses them into clean, manageable briquettes. For example, 300 litres of chips can be compressed into a few dozen briquettes. This corresponds to a volume reduction of approx. 80 %.

Even more performance with high-pressure coolant systems.

A significant increase in performance is achieved through the use of high-pressure coolant systems. In this process, the coolant is fed through the work spindle directly to the cutting edges of the tool. The separate inclined bed belt filter Coolant system incl. automatic paper feed and fill level monitoring for chipping steel, grey cast iron and aluminium. Fine chips can be filtered out in advance using a pre-filter. A duplex filter is integrated into the coolant return to protect the rotary seal. The frequency converter enables infinitely variable pressure regulation in the NC programme.

Significant increase in performance.

HEDELIUS Hochdruck-Kühlmittelanlage SKM500

Coolant system SKM 500

Contents clean tray: 500 Liter

Filtering level: 1000 µm

Filter performance: 180 l/min

Pump output: 2,0 bar, 150 l/min

Separat stehende Kühlmittelanlage mit herausnehmbaren Stahlblech-Filtereinsatz.

HEDELIUS Hochdruck-Kühlmittelanlage SKM900

Coolant system SKM 900

Contents clean tray: 900 Liter

Filtering level: 190 µm

Filter performance: 180 l/min

Pump output: 2,5 bar, 150 l/min

Separat stehende Schrägbett-Bandfilterkühlmittelanlage inkl. automatischem Papiervorschub, Füllstandsüberwachung und Stahlsiebvorfilter über dem Filtervlies zum Abscheiden von Aluminium- und Kunststoffspänen.

HEDELIUS Hochdruck-Kühlmittelanlage SKM1400

Coolant system SKM 1400

Contents clean tray: 1400 Liter

Filtering level: 190 µm

Filter performance: 180 l/min

Pump output: 2,5 bar, 150 l/min

Customised extensions

Zahlreiche Optionen zur Erweiterung des Leistungsspektrums der Kühlmittelanlagen stehen Ihnen zur Verfügung z. B.:

+ Eintauch-Kühl- und Heizaggregat
+ Öl-Skimmer
+ Bandabstreifer zum Abführen von Spänen
+ Digitales Refraktometer
+ Druckerhöhungspumpe 50/75 bar

Measure + check.

With touch probes and lasers.

3D measuring sensors, tool measurement sensors and tool lasers can be used for various applications, such as preparatory, regulating or monitoring measurement. During preparatory measurement, workpiece dimensions, angular errors or clamping errors are determined. While control measurement automatically reacts to material problems, system-related process deviations and unplanned events to ensure that the process is as successful as possible, monitoring measurement logs the machining result.

infra-red receiver

Im Spindelgehäuse integrierter Infrarot-Empfänger zum prozesssicheren Kommunizieren mit 3D-Messtaster und Toolsetter.

3D infra-red measuring sensor

Activating 3D stylus, complete with transmitter, battery and storage box.

Tool setter

tool setter

An der Dreh-Schwenktischeinheit montiertes, kabelloses 2D-Tastsystem zur Vermessung und Überprüfung der Werkzeuge.

Laser control system

laser control system

An den Dreh-Schwenktisch montiertes Laser-Werkzeugkontrollsystem Blum LC50 260 zur berührungslosen Werkzeugvermessung und Werkzeugbrucherkennung, einschließlich Smart-Dock-Anschlussfläche, Reinigungsdüse HPC und Standard Messzyklen.
